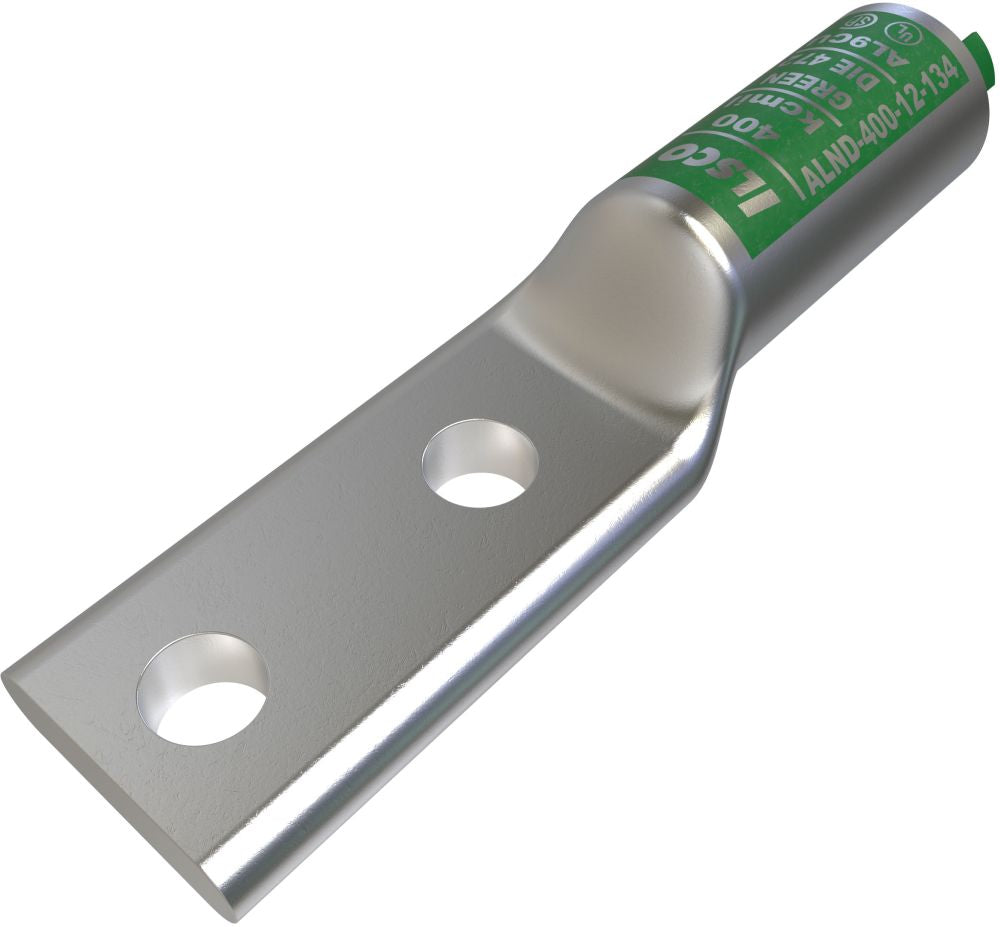

Ilsco ALND-400-12-134 Compression Cable Lug

Manufactured from High Strength Aluminum Alloy Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded End Cap Identifies the Proper Compression Die; Roll Marked for Easy Identification and Proper Location of Crimps; Two Bolt Hole Pattern Provides Maximum Surface Contact, Secure Attachment and Stabilization; Pre-Filled with De-Ox Oxide Inhibiting Compound Prevents Oxides from Forming and Promotes Connector Longevity; Range Taking Permits Inventories to be Kept to a Minimum; Application Versatility; RoHS Compliant

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 400 KCMIL
Barrel Type: Standard, Long
Barrel Length: 2.303 Inch
Pad Size: 3.055 Inch Length x 1.623 Inch Width
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Green
Die Index: 472
Material: Electro-Tin Plated Aluminum Alloy
Overall Length: 5.99 Inch
Approval: UL E6207/453G/486A/B, CSA
