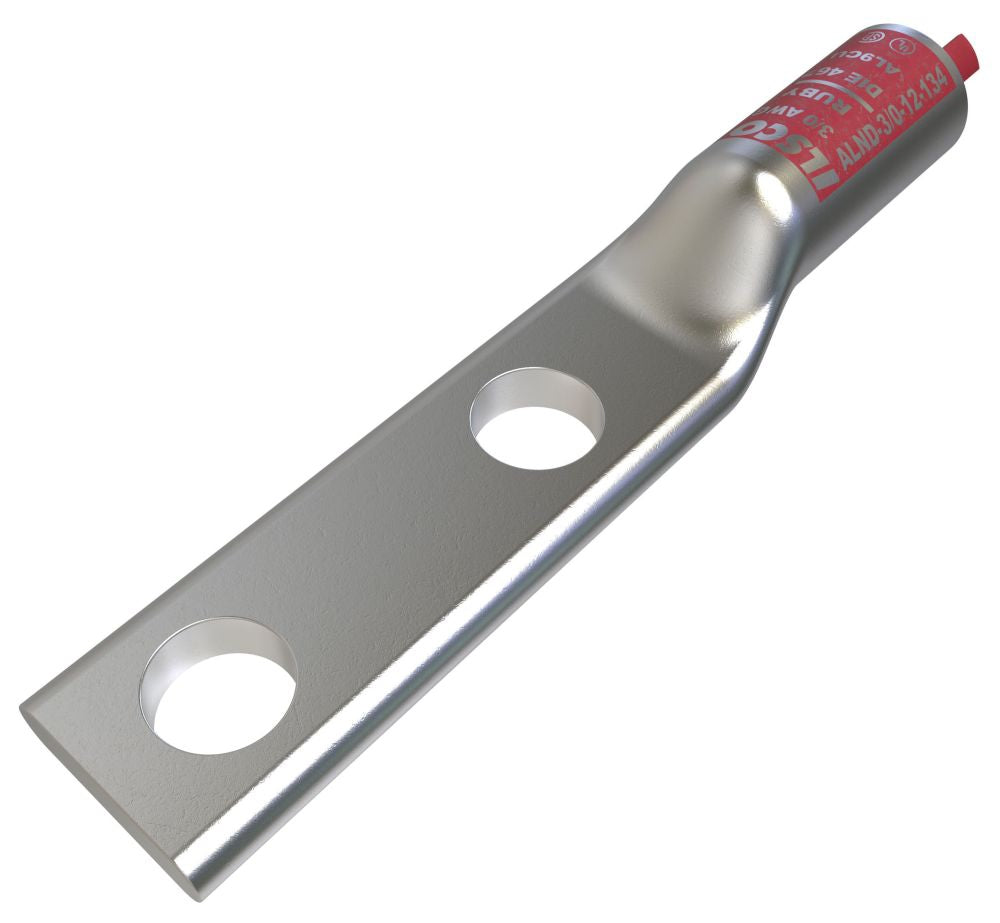

Ilsco ALND-3/0-12-134 Compression Cable Lug

Manufactured from High Strength Aluminum Alloy; Electro-Tin Plated; Chamfered Entry; Color Coded End Cap; Two Bolt Hole Pattern; Pre-Filled with De-Ox Oxide Inhibiting Compound; Range Taking; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Dual Rated Al9Cu to 90 Deg C; Offers Maximum Conductivity and Excellent Crimping Characteristics; Provides Low Contact Resistance; for Easy Conductor Insertion; Identifies the Proper Compression Die; For Easy identification and Proper Location of Crimps; Provides Maximum Surface Contact, Secure Attachment and Stabilization; Prevents Oxides from Forming and Promotes Connector Longevity; Permits Inventories to be Kept to a Minimum; Versatility; RoHS Complaint

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper/Aluminum
Conductor Size: 3/0 AWG
Barrel Type: Standard, Long
Barrel Length: 1.355 Inch
Pad Size: 3.032 Inch Length x 1.044 Inch Width
Number of Pad Holes: 2
Pad Hole Spacing: 1.75 Inch
Stud Size: 1/2 Inch
Color: Ruby
Die Index: 467
Material: Electro-Tin Plated Aluminum Alloy
Overall Length: 5.26 Inch
Approval: UL E6207/453G/486A/B, CSA
