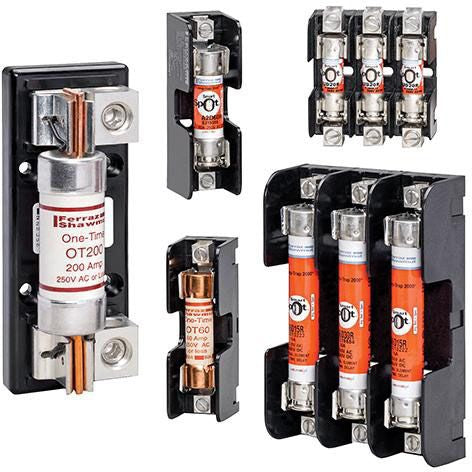

Mersen EP 60608 Fuse Block

Mersin Class H and K Fuse Blocks Accommodate All Class H and K Power Fuses; A Choice of Screw, Pressure Plate, Box and Special Order Stud Connectors Fit a Wide Range of Stranded or Solid Copper or Aluminum Wire; Insulators are Either Molded Glass-Filled Polycarbonate (Gap) or Phenol with Verified Dielectric Strength in Excess of 2500V; 30, 60, 100 and 200A Fuse Blocks Feature a Unique Adder Block to Form Multi-Pole Segmented Blocks of as Many Poles as Desired; All Fuse Clips are Made of High Conductivity Tin-Plated Copper; RoHS/REACH Compliant

Specifications:

Type: Barrier
Material: Molded Glass Filled Polycarbonate
Number of Poles: 3
Fuse Type: Class H/K
Fuse Voltage Rating: 600 Volt AC/DC
Fuse Current Rating: 60 Amp
Wire Size: 14 to 2 AWG (Aluminum/Copper)
Terminal Type: Box Lug
Clip Type: Spring Reinforced
Approval: UL 4248, CSA
