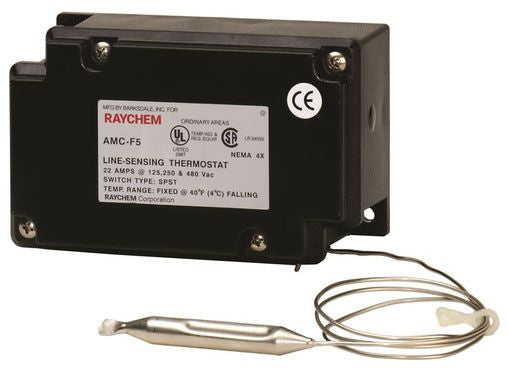

Raychem AMC-F5 Electronic Thermostat
Regular price
$259.97
Couldn't load pickup availability
nVent RAYCHEM AMC-F5 is a thermostat for pipe freeze protection heat tracing applications in non-hazardous locations. It has a fixed set point of 40 Deg F/5 Deg C, used in either ambient or surface sensing modes, it can control a single heat tracing circuit or switch multiple circuits through a contactor.
Specifications:
Type: Set Point
Voltage Rating: 125/250/480 Volt AC
Current Rating: 22 Amp
Switch Type: SPST
Temperature Rating: -30 to 140 Deg F
Size: 3.2 Inch Width x 2.5 Inch Depth x 5.2 Inch Height
Approval: UL, CSA
