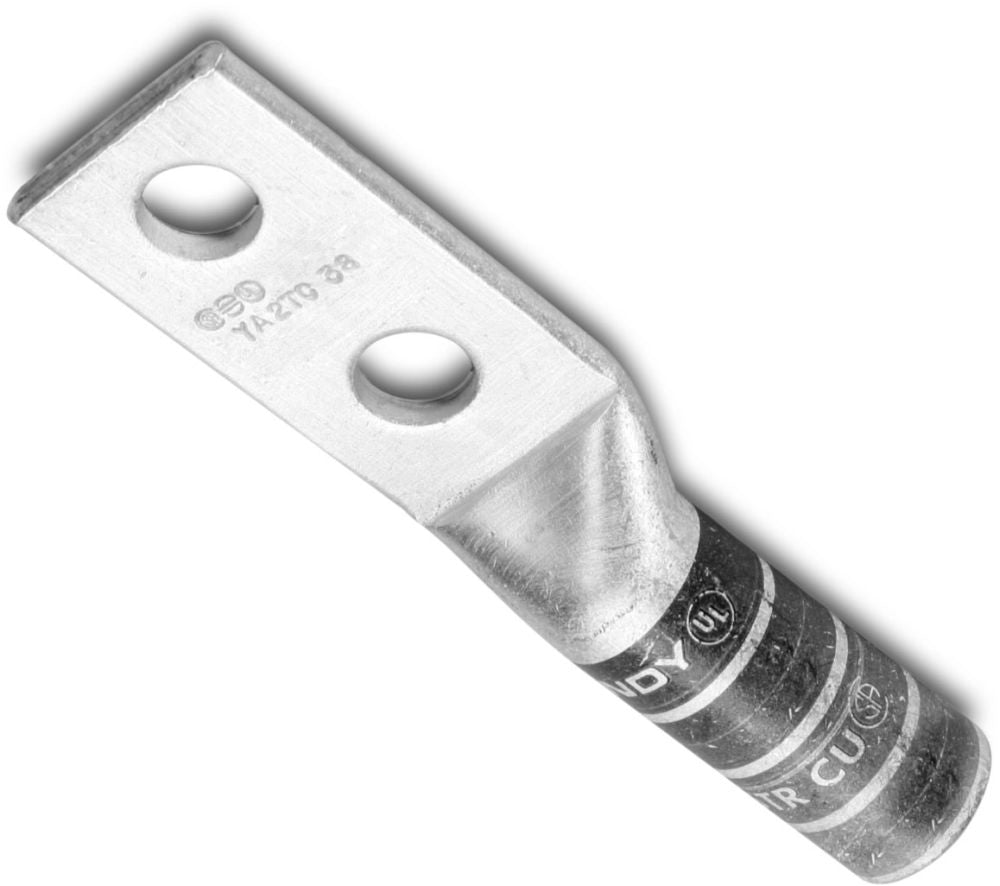

Burndy YA292TC38 Compression Cable Lug

Out of stock
SKU: 203928
Regular price $26.62
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 250 KCMIL Solid/Stranded (Code)
Barrel Type: Long, Standard, Straight
Barrel Length: 1.62 Inch
Pad Size: 1.1 Inch W x 0.16 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Yellow
Die Index: 16
Material: Electro-Tin Plated Copper
Overall Length: 4.02 Inch
Approval: UL 468A/468B, CSA
