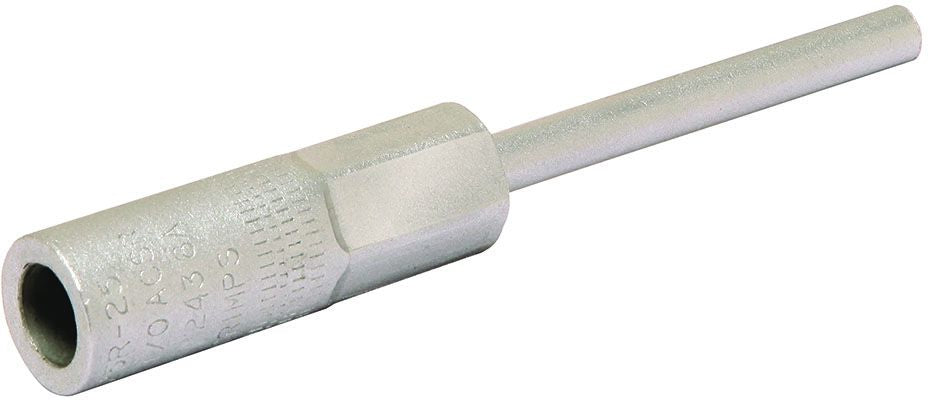

Burndy YE28R-60 Compression Transformer Pin Terminal
Regular price
$26.96
Couldn't load pickup availability
A Proprietary Coating System was Developed through Intense Research Efforts which Vastly Prolongs the Life of this Type of Connection; To Help Identify the New Product, a Hex Shaped Crimp is Now Used on the Pin Interface Crimp and Overhead Color Coded End Caps are Utilized; RoHS Compliant
Specifications:
Conductor Material: Aluminum, ACSR
Conductor Size: 4/0 AWG Stranded (Aluminum), 4/0 AWG (ACSR)

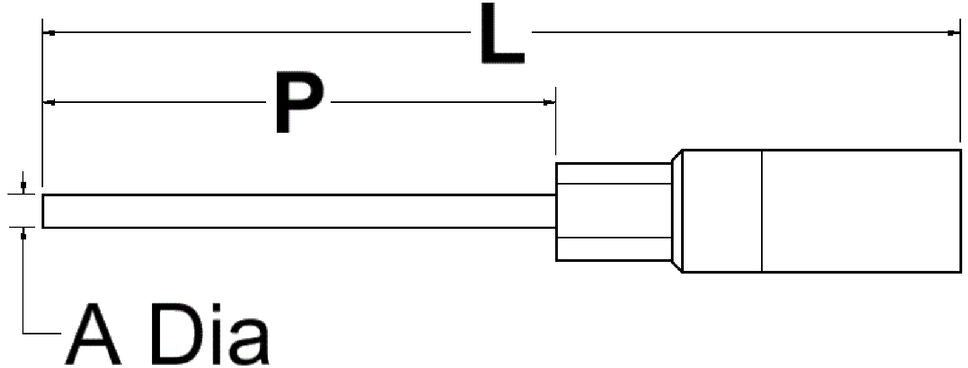

Pin Size: 3/8 AWG x 6 Inch L
Overall Length: 10-5/8 Inch
Die Index: 249/840/11A
Color Code: Pink
Material: Tin-Plated Copper
