Single-Sleeve Aluminum Unisplice Designed to Splice ACSR as Simply as All Aluminum; Pre-Filled with Penetrox Joint Compound, Strip-Sealed and Capped to Limit Oxide Growth and to Increase the Life of the Connection; Eliminates Strand Stripping, Installing Separate Steel Sleeve and Filling with Joint Compound; RoHS Compliant

Specifications:

Type: Full Tension, Overhead Distribution
ACSR Conductor Size: 2 AWG
AL/CU Conductor Size: 2 AWG
AAC Conductor Size: 77.47 KCMIL
Die Index: BG/243/687

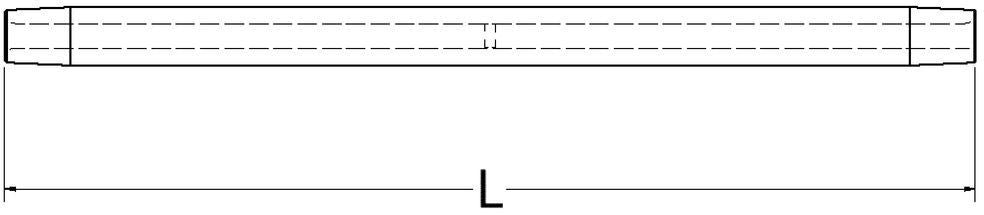

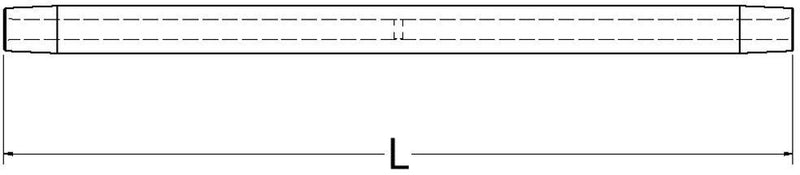

Length: 10-1/4 Inch
Body Material: Aluminum
Approval: RUS
