Burndy YDS25RL Compression Cable Splice
Regular price
$26.54
Couldn't load pickup availability
Single-Sleeve Aluminum Unisplice Designed to Splice ACSR as Simply as All Aluminum; Pre-Filled with Penetrox Joint Compound, Strip-Sealed and Capped to Limit Oxide Growth and to Increase the Life of the Connection; Eliminates Strand Stripping, Installing Separate Steel Sleeve and Filling with Joint Compound; RoHS Compliant
Specifications:
Type: Full Tension, Overhead Distribution
ACSR Conductor Size: 1/0 AWG
AL/CU Conductor Size: 1/0 AWG
AAC Conductor Size: 123.3 KCMIL
Die Index: C/167/247/660/702

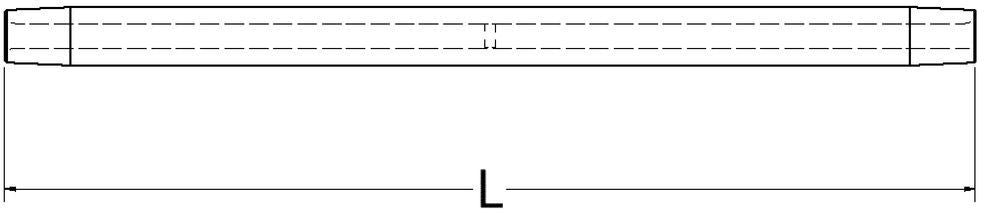

Length: 13-7/8 Inch
Body Material: Aluminum
Approval: RUS
