Burndy YDS28RL Compression Cable Splice
Regular price
$61.34
Couldn't load pickup availability
Single-Sleeve Aluminum Unisplice Designed to Splice ACSR as Simply as All Aluminum; Pre-Filled with Penetrox Joint Compound, Strip-Sealed and Capped to Limit Oxide Growth and to Increase the Life of the Connection; Eliminates Strand Stripping, Installing Separate Steel Sleeve and Filling with Joint Compound; RoHS Compliant
Specifications:
Type: Full Tension, Overhead Distribution
ACSR Conductor Size: 4/0 AWG
AL/CU Conductor Size: 4/0 AWG
AAC Conductor Size: 246.9 KCMIL
Die Index: 654

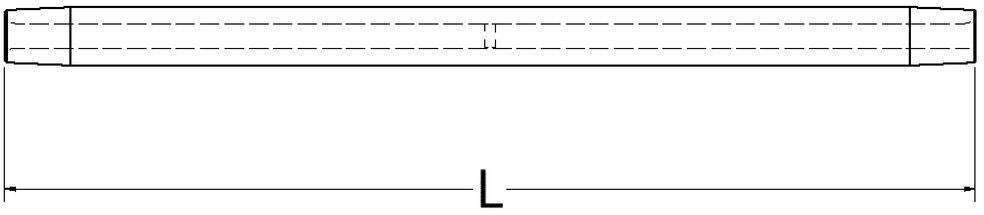

Length: 18-1/4 Inch
Body Material: Aluminum
Approval: RUS
