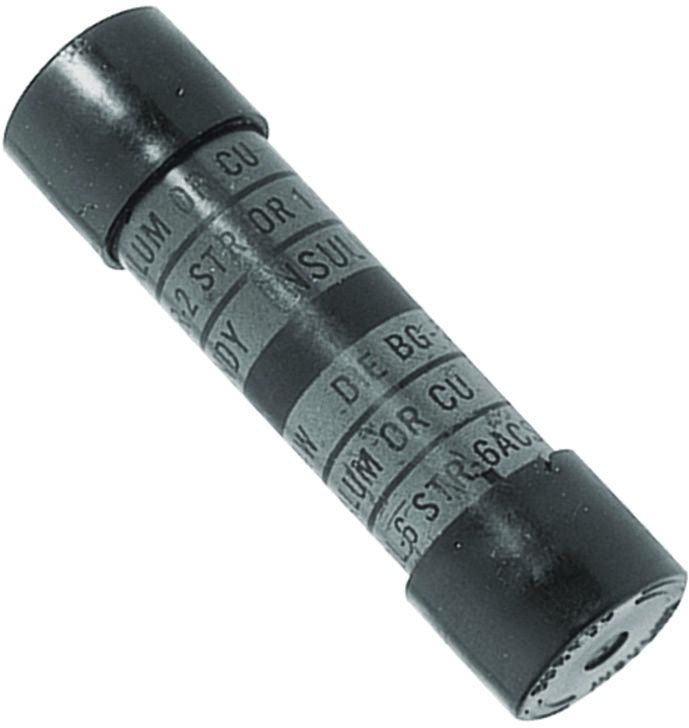

Pre-Insulated Service Entrance Compression Connector Installed with OH25, OUR840 and MD6 Hytool as Well as Y35 and Y750 Hypress Tools; Polyethylene Caps Prevent Dirt from Accumulating in Barrel, Grip Cable for Easy Two-Hand Installation, Seal Out Moisture; Aluminum Connector is Anchored to Jacket, Assuring the Connector is Under the Die When Crimping; Nylon Jacket Insulated Connectors Electrically and Protects Against Water and Weather; Superior Color Coding; Pre-Filled with Penetrox Joint Compound and Stripsealed to Limit Oxidation and to Increase the Life of the Connection; Do Not Use Insulated Sealed Connectors on Bare Conductors, Refer to Linkit Connectors; RoHS Compliant

Specifications:

Material: Pre-Insulated Aluminum, Nylon Jacket, Polythene Cap
Conductor Material: ACSR, Aluminum, AAAC, Copper
Side A ACSR Conductor Size: 2 AWG
Side A AL/CU Conductor Size: 2 to 1 AWG Stranded, 2 to 1 AWG Compact (Aluminum)
Side B ACSR Conductor Size: 2 AWG
Side B AL/CU Conductor Size: 2 to 1 AWG Stranded, 2 to 1 AWG Compact (Aluminum)
Color Code: Red
Die Index: BG or 5/8
Length: 2-3/4 Inch
