3M 5412-CI-4/0 Power Cable Splice Kit

  • Sale
  • Regular price $89.61
Shipping calculated at checkout.

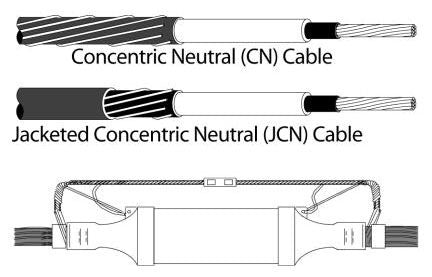

3Mâ„¢ Molded Rubber Qs-Ii Inline Jan/Cn Splices 5411, 5411A and 5412 Series are One-Piece Inline Splices Designed for Use on 15 Kilovolt Rated Cn and Jan Cable; Meets the Requirements of IEE 404

Specifications:

Type: In Line
Voltage Rating: 15 KV
Cable Type: Concentric Neutral/Jacketed Concentric Neutral
Number of Conductors: 1
Insulator Type: Molded Rubber
Connector Type: CI-4/0
Conductor Size: 4/0 AWG Stranded (Aluminum/Copper)
Cable Insulation Outer Diameter: 0.84 to 1.05 Inch
Number of Splices: 1
Contents: (1) Molded Rubber Splice, (1) Pocket of Silicone Grease, (1) Instruction Sheet
