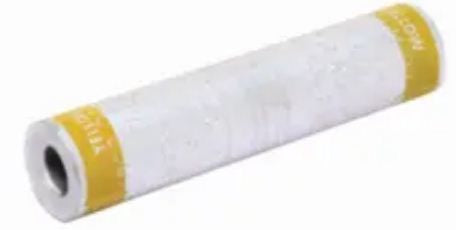

Aluminum Compression Sleeve with Solid Centre Barrier, Designed for Commercial and Heavy Residential Service; Installed with Standard Tooling; Pre-Filled with Penetrox Joint Compound, Capped and Strip Sealed to Limit Oxidation and to Increase the Life of the Connection; RoHS Compliant

Specifications:

Material: Aluminum
Conductor Material: ACSR, Aluminum, Copper
Side A ACSR Conductor Size: 2/0 AWG
Side A AL/CU Conductor Size: 2/0 AWG Stranded, 3/0 AWG Aluminum Compact
Side B ACSR Conductor Size: 2/0 AWG
Side B AL/CU Conductor Size: 2/0 AWG Stranded, 3/0 AWG Aluminum Compact
Color Code: Gray
Die Index: 249, K-840

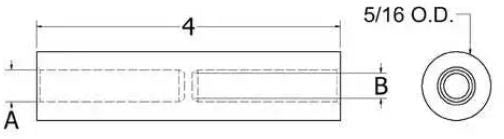

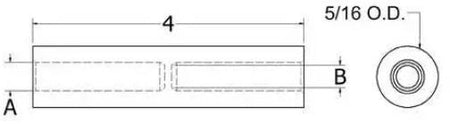

Length: 4 Inch
