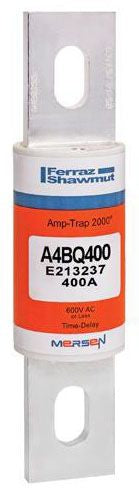

Mersen EP A4BQ400 Low Voltage UL Power Fuse

Out of stock
SKU: 204616
Regular price $761.32
OR

Amp-Trap 2000 A4BQ fuses are 20% more current-limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in, 4-second time-delay characteristic (at 500% of rated current) accommodates harmless inrush currents without nuisance opening.

Specifications:

Type: Class L
Characteristics: Fast Acting, 4 Second Time Delay (At 500 Percent Rated Load)
Voltage Rating: 600 Volt AC, 500 Volt DC
Current Rating: 400 Amp
Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
Terminal Type: Blade
Diameter: 2 Inch
Length: 8-5/8 Inch
Approval: UL 248-10, CSA C22.2
