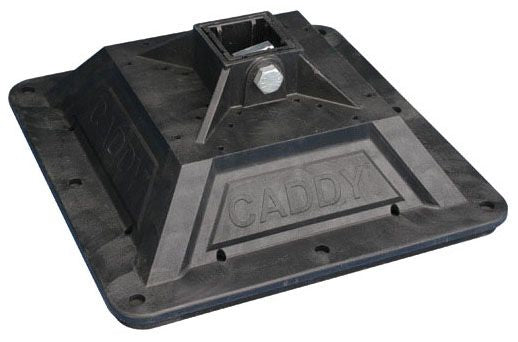

Erico PHBR H-Frame Post Base

Foam or rubber bottom offers low abrasion interface for better roof membrane protection; Compatible with roof surfaces including single ply, bituminous, metal and spray foam; Provides superior load distribution, even with varying rooftop surfaces; Rubber rooftop interface ideal for solar panel array installations; Mounting hardware pre-installed in bases; Hot-dip galvanized and UV stabilized for long lasting performance; Accepts standard strut channels; Supports green building requirements

Specifications:

Item: Base
Size: 12.375 Inch Length x 12.375 Inch Width x 4.66 Inch Height
Material: Polyethylene, Polypropylene, Steel
Color/Finish: Hot Dip Galvanized
Used On Item: Pyramid H-Frame Post
