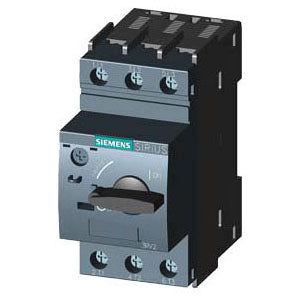

3RV2 Motor Starter Protectors/Circuit Breaker Contribute to Energy Efficiency Throughout the Plant as Follows; Minimization of Energy Losses Through Optimization of the Bimetal Trip Units; Reduction of Inherent Power Loss; Less Heating of the Control Cabinet; Smaller Control Cabinet Air Conditioners Can be Used; We Offer You a Unique Portfolio for Industrial Energy Management, Using an Energy Management System that Helps to Optimally Define Your Energy Needs, We Split up Our Industrial Energy Management into Three Phases-Identify, Evaluate and Realize and We Support You with the Appropriate Hardware and Software Solutions in Every Process Phase; The Innovative Products of the Sirius Industrial Controls Portfolio Can also Make a Substantial Contribution to a Plant's Energy Efficiency

Specifications:

Type: Thermal Magnetic
Voltage Rating: 600 Volt AC at 50/60 Hertz (UL/CSA), 690 Volt AC at 50/60 Hertz (IEC)
Maximum AC Voltage Rating: 690 Volt
Current Rating: 12.5 Amp
Number of Poles: 3
Trip Setting: 9 to 12.5 Amp
Starter Size: S0
Motor FLA: 12.5 Amp at 480/600 Volt
Terminal Type: Screw
Wire Type: (2) 1 to 2.5 Square Millimeter, (2) 2.5 to 10 Square Millimeter Stranded
Size: 45 Millimeter Width x 96.9 Millimeter Depth x 97 Millimeter Height
Approval: UL 508, CSA C22.2, CE, CCC, EAC
