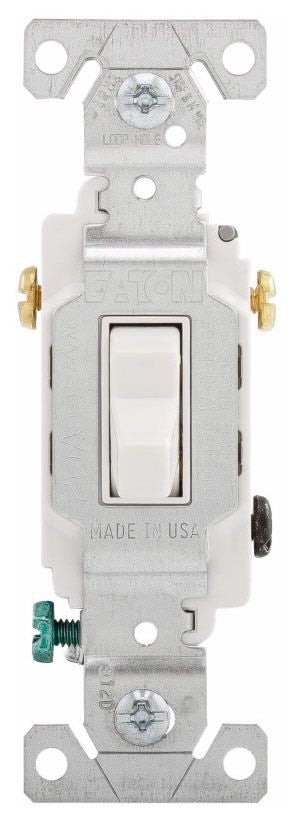

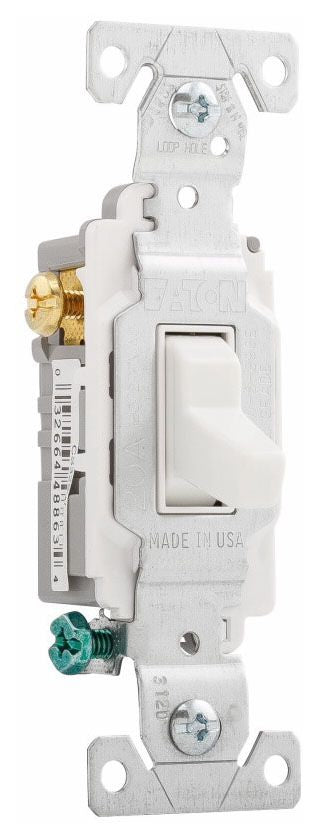

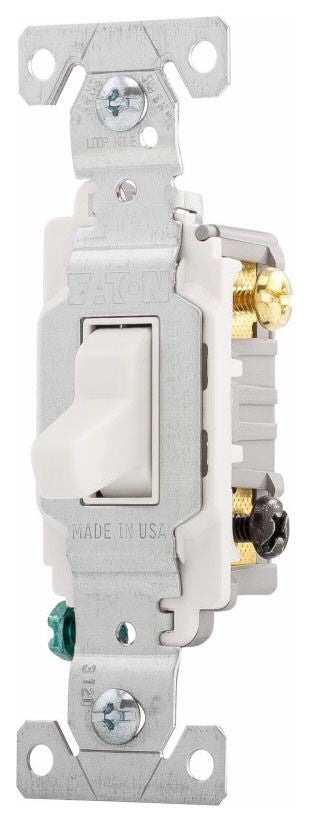

Arrow Hart CS320W AC Toggle Switch

Patent Pending Spring Cup Toggle Design for Robust Actuation; Terminals Accept up to #10 Awg Solid or Stranded; 120/277 Volt AC Rating Ideal for Fluorescent Lighting Fixtures Typical in Commercial Applications; Terminal Screws Backed Out and Ready for Wiring; Tri-Combo Head Mounting and Terminal Screws Ease Installation; Tapered Lead-In Slots on Back Wiring Holes Assist in Gathering Stranded Wires for Faster, More Secure Connections; RoHS Compliant

Specifications:

Type: Toggle
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1 HP at 120 Volt AC, 2 HP at 277 Volt AC
Operation Type: 3-Way
Material: Nylon (Toggle), PVC (Housing), 0.045 Inch Thickness Nickel Plated Galvanized Steel (Strap)
Color: White
Wiring: Side
Size: 1.3 Inch Width x 0.902 Inch Depth x 4.2 Inch Height
Application: Commercial
Approval: UL (Canada and US), NOM 426
