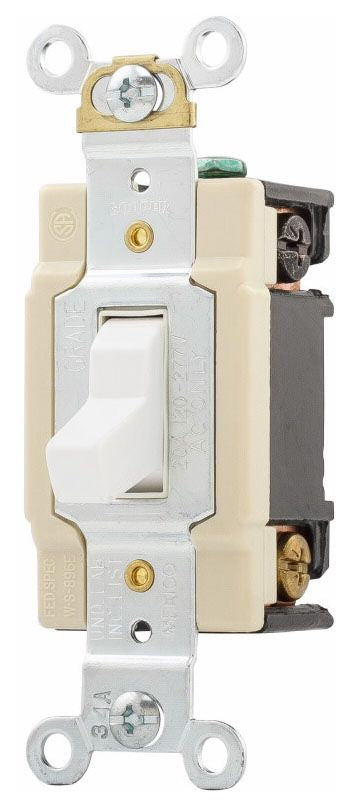

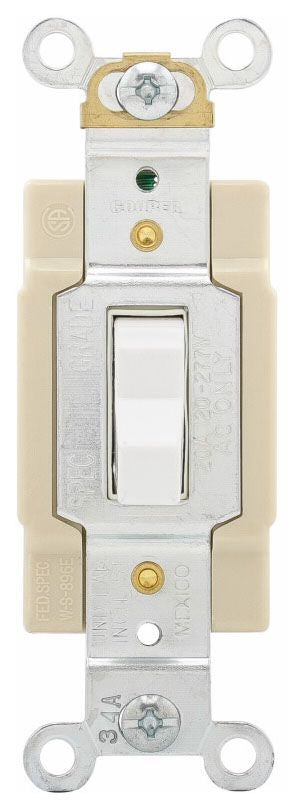

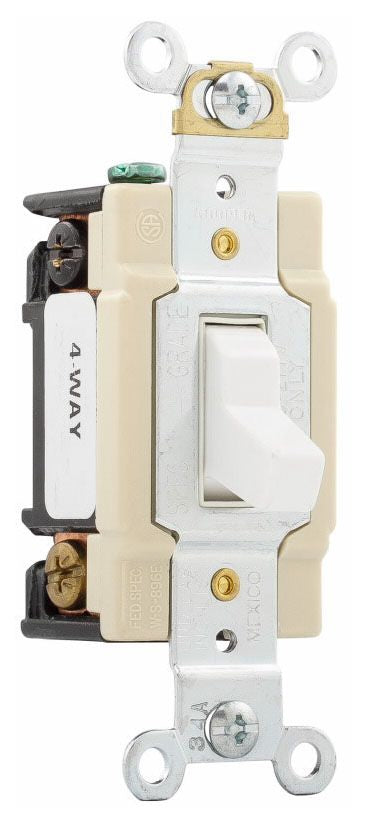

Arrow Hart CSB420W AC Toggle Switch

Patent Pending Spring Cup Toggle Design for Robust Actuation; Terminals Accept up to #10 Awg Solid or Stranded; 120/277 Volt AC Rating Ideal for Fluorescent Lighting Fixtures Typical in Commercial Applications; Terminal Screws Backed Out and Ready for Wiring; Tri-Combo Head Mounting and Terminal Screws Ease Installation; Tapered Lead-In Slots on Back Wiring Holes Assist in Gathering Stranded Wires for Faster, More Secure Connections; RoHS Compliant

Specifications:

Type: Toggle
Current Rating: 20 Ampere
Voltage Rating: 120/277 VAC
Power Rating: 1 HP at 120 VAC, 2 HP at 277 VAC
Operation Type: 4-Way
Material: Nylon Toggle
Color: White
Wiring: Back, Side
Size: 1.3 Inch W x 1.1 Inch D x 4.19 Inch H
Application: Commercial
Approval: UL (Canada and US), NOM 426
