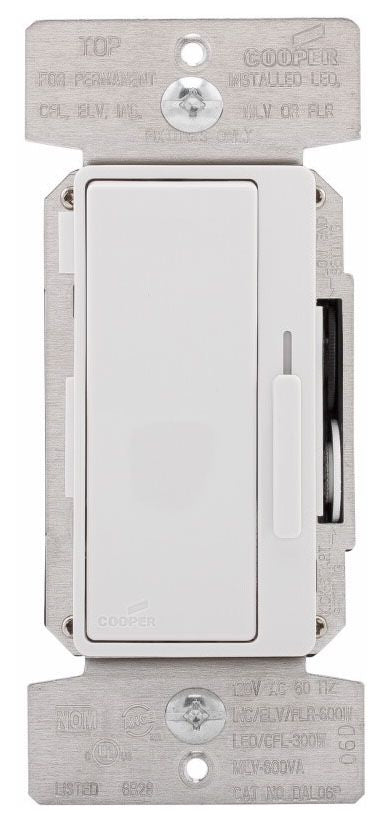

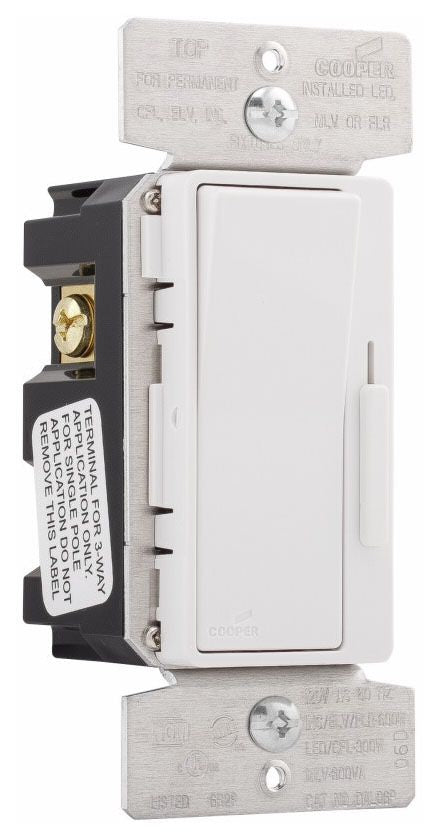

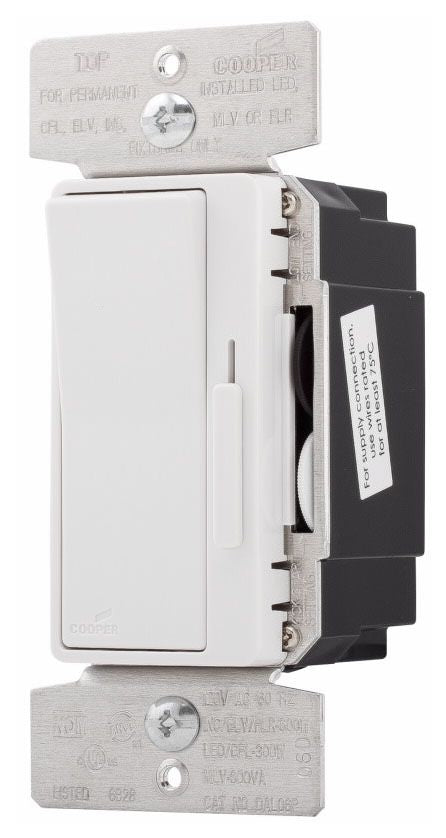

Arrow Hart DAL06P-C1 Decorator Dimmer

Electro-Mechanical Push Pad for On/Off Operation with Separate Dim/Bright Bar; 10-Second Delayed Off Feature; LED Light Level Display for Presetting Illumination Levels and Master/Accessory Units for Multi-Location Control; Adjustable Low-End and High-End Dimming Range to Prevent Lamp Flickering; No De-Rating Required for Cfl/LED in Multi-Gang Installations; No De-Rating Required in Multi-Gang Installations; Preset Feature Allows User to Return to Previous Light Level When Turning Lights On; Adjustable Low-End Trim; Fully Adjustable Rapid Start Setting for Optimal Lamp Start-Up at Low Preset Light Levels; Each Dimmer Comes with Color Kit Package Which Includes 3 Colors; Title 24 Compliant

Specifications:

Type: Wall Dimmer
Operator Type: Decorator Switch with Preset
Operation Type: 1-Pole/3-Way
Voltage Rating: 120 VAC at 60 Hz
Load Type: Compact Fluorescent/Electronic Low Voltage/Fluorescent/Halogen/Incandescent/LED/Magnetic Low Voltage
Load Rating: 300 W (LED/CFL), 600 W (Incandescent/Halogen/Fluorescent/Magnetic Low Voltage/Electronic Low Voltage)
Wall Plate Type: Decorator
Finish: Almond, White, Ivory
Size: 1.8 Inch W x 1.29 Inch D x 4.2 Inch H
Approval: UL (Canada and US), UL 1472, NOM
