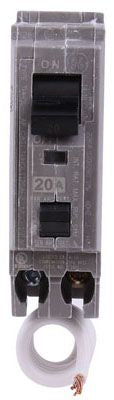

Q-Line Circuit Breakers are 1-Inch Wide per Pole, Compact, Thermal-Magnetic Devices Designed for Residential and Commercial Applications; The QL Breakers are Plug-In Versions of the Q-Line Used for Connection to Load Centers and Lighting Panels; All Q-Line Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability

Specifications:

Type: Fixed Thermal Magnetic
Poles: 1
Voltage Rating: 120/240 VAC
Current Rating: 20 Ampere
Interrupting Rating: 22 Kiloampere
Wire Size: 14 to 10 AWG (Copper/Aluminum)
Construction Feature: Arc Fault Circuit Interrupter
Mounting: 1 Inch Plug-In
Used On: AL/ALC Series Panelboard, Residential Loadcenter
Size: 1 Inch W x 2-3/8 Inch D x 3-9/32 Inch H
Approval: UL
