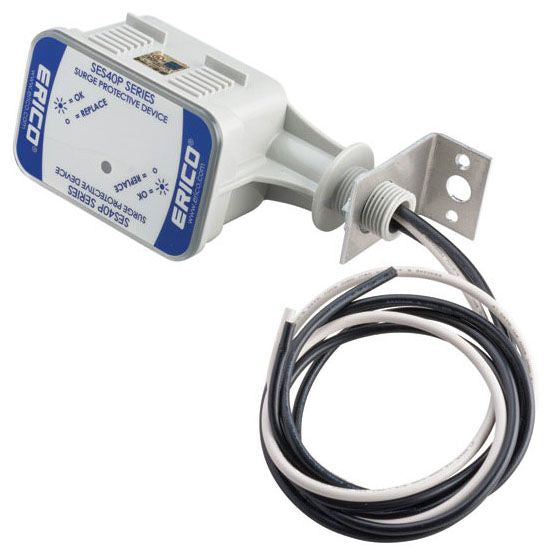

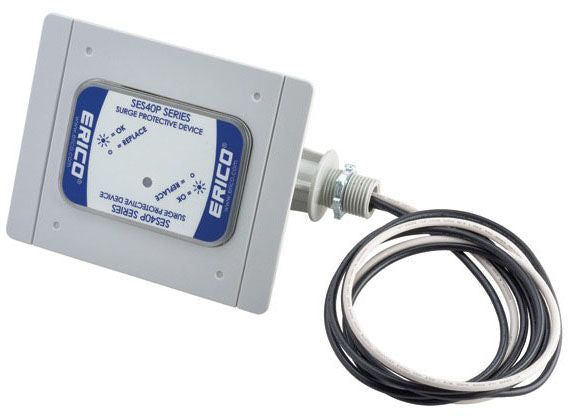

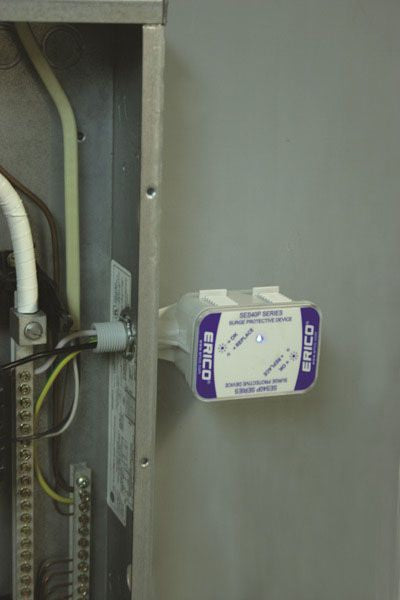

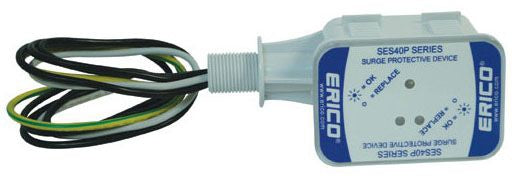

Erico SES40P120/240SP Service Entrance Suppressor

Front Facing Design Eases Installation and Performance Monitoring; This Series of Surge Protective Devices Provide Economical Protection against Damaging Transients and Surge Events; The Housing is Constructed of Uv-Stabilized Thermoplastic and Meets the Ul 50 Type 4X Rating, Making; It Ideal for Both Indoor and Outdoor Applications; All of the Models have a 20 Kiloamp Nominal Discharge Current Rating, the Highest Level Recognized Under the Ul 1449 Edition 4 Standard

Specifications:

Voltage Rating: 120/240 Volt AC
Input Current: 40 Kiloamp
Frequency Rating: 0 to 100 Hertz
Circuit Configuration: 3-Phase 2-Wire with Ground
Modes of Protection: L-L, L-N
Connection Type: 36 Inch 12 AWG Lead Wire
Operating Temperature: -40 to 176 Deg F
Enclosure: NEMA 4X, IP65
Size: 4.75 Inch Width x 3 Inch Depth x 2.75 Inch Height
Mounting: 1/2 Inch Straight Nipple/Direct Mount Panel
Application: Commercial, Industrial, Residential
Approval: CAN/CSA C233.1, UL 94V-0, UL (Canada and US)
Used On: Service Entrance
