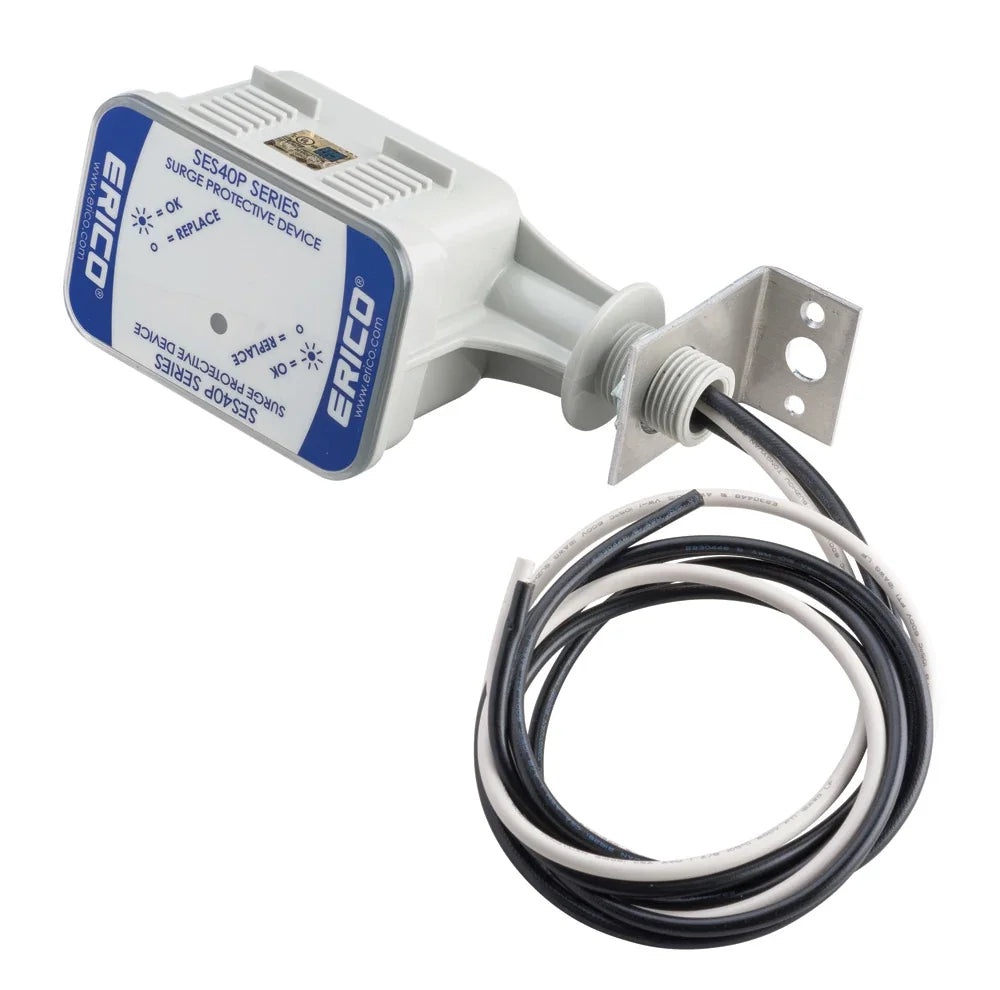

Erico SES40P4803P Service Entrance Suppressor
Regular price
$160.84
Couldn't load pickup availability
Compact Design can be Directly Mounted to Panel or Installed in a Small Space; Front Facing Design Eases Installation and Performance Monitoring; 0 KA 8/20 Micro Sec Maximum Surge Rating Per Mode; Optional Flush Mounting Plate
Specifications:
Voltage Rating: 277/480 VAC
Input Current: 200 Kiloampere
Frequency Rating: 0 to 100 Hz
Circuit Configuration: 3-Phase Delta
Modes of Protection: L-G, L-L, L-N, N-G
Operating Temperature: -40 to 176 Deg F
Enclosure: NEMA 4X, IP65
Size: 4-3/4 Inch W x 3 Inch D x 2 3/4 Inch H
Mounting: Straight Nipple
Approval: UL (Canada and US), CSA
Used On: Service Entrance, Branch, Commercial, Industrial, Residential, OEM Panel, Solar Combiner Box
