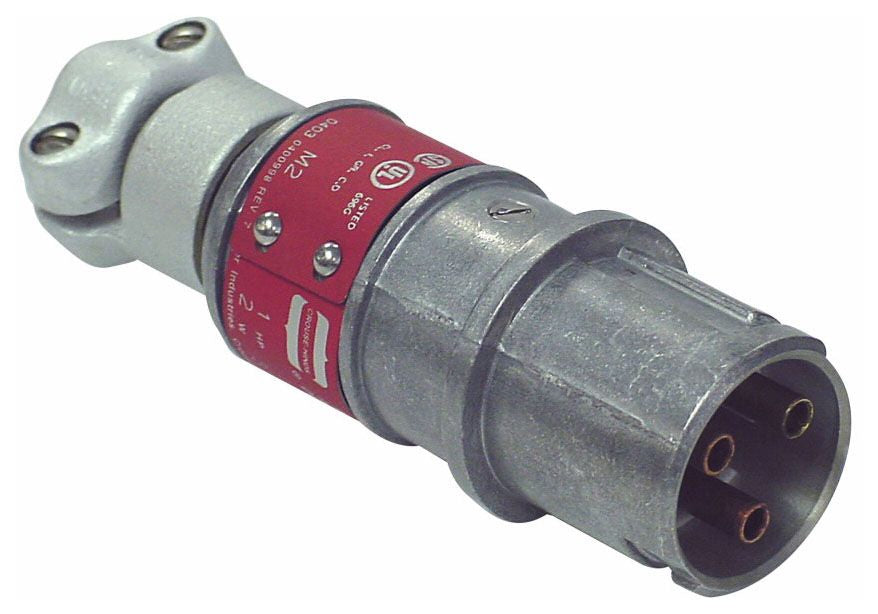

Crouse-Hinds CPP516 Pin and Sleeve Plug

Made of Krydon fiberglass-reinforced polyester, Crouse-Hinds series Arktite non-metallic plugs, receptacles and connectors are used to supply power to portable electrical devices such as welders, motors, pumps and conveyors. Available in 30A, 60A and 100A, these pin and sleeve devices are ideal for use in non-hazardous areas of chemical plants, sewage treatment facilities, cement plants, pulp and paper, food processing and other industrial facilities.Arktite non-metallic pin and sleeve devices feature an innovative arc-snuffing design that enables large power loads to be disconnected under load without causing an arc flash in the area

Specifications:

Voltage Rating: 125 to 250 Volt AC at 60 Hertz, 18 Volt DC
Current Rating: 20 Amp
Power Rating: 1 HP
Number of Poles: 3
Number of Wires: 2
Minimum Cable Outer Diameter: 0.312 Inch
Maximum Cable Outer Diameter: 0.625 Inch
Material: Acrylic Painted Copper-Free Aluminum
Mating Receptacle: CPS
Enclosure: Class I Div 1 and 2 Group C D
Approval: UL 1203, CSA C22.2
