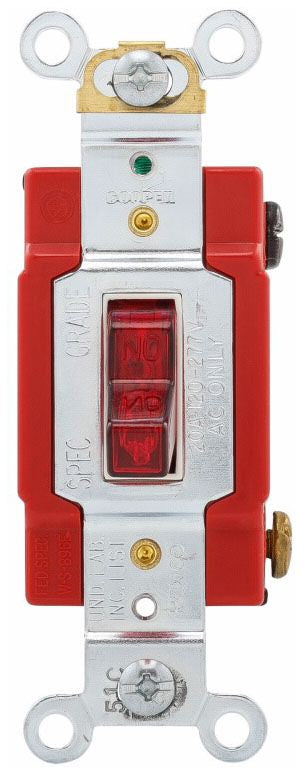

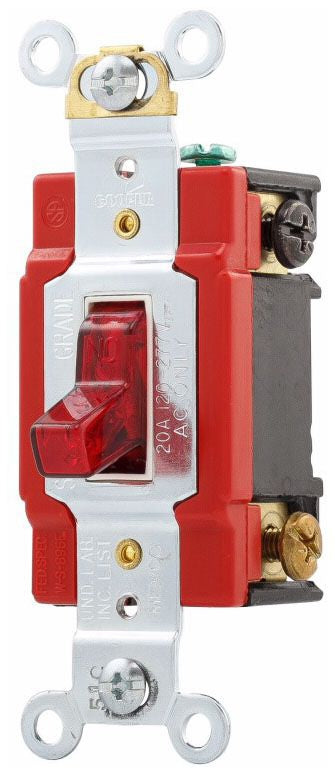

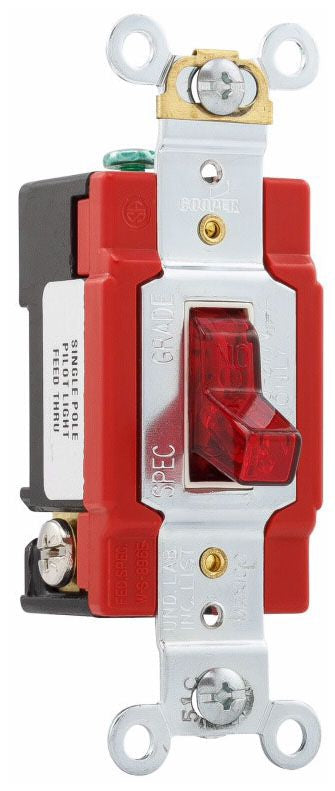

Arrow Hart AH1221PL AC Pilot Light Switch

Automatic Grounding Eliminates Need for Bonding Jumper in Metal Enclosures; Robust Nylon Toggle for Heavy Abuse Areas; Heavy Gauge 0.05 Inch Thk Plated Steel Mounting Strap Withstands Abuse and Corrosion; Tri-Combo Head Terminal and Mounting Screws, Plus Easy-Access Grounding Terminal; Dual Back-Wire Holes for Maximum Feed-Through Wiring Flexibility, Accepts up to 10 AWG Solid or Stranded Wire; One Piece Brass Contact Arm and Large Silver Alloy Contact Assures Low Resistance Switching; Patent Pending Spring Cup Toggle Design for Consistent Positive Activation

Specifications:

Type: Toggle
Voltage Rating: 120/277 VAC
Current Rating: 20 Ampere
Operation Type: Single Pole
Wiring: Back, Side
Wall Plate Included: No
Material: Nylon Toggle, Polycarbonate Bottom/Top
Color: Red
Size: 1.31 Inch W x 1.05 Inch D
Application: Industrial
Approval: UL (Canada and US), UL 20, UL FS, NOM 426
