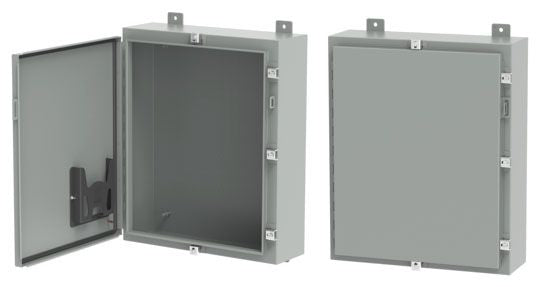

Hoffman Enclosures A36H30BLP Wall Mount Enclosure

These single-door enclosures feature a hinged door with clamps on three sides to create a secure seal in indoor or outdoor environments. The gray polyester powder finish inside and out provides enhanced corrosion protection in outdoor applications.

Specifications:

Type: 1-Door
Height: 36 Inch
Width: 30 Inch
Depth: 8 Inch
Material: Mild Steel
Material Specification: 14 Gauge
Color: ANSI 61 Gray
Finish: Polyester Powder Painted
Cover Type: Continuous Hinged, (7) Stainless Steel Screw-Down Door Clamp, Heavy Gauge Continuous Hinge Pin, Seamless Foam-In-Place Gasketed, Padlockable Hasp and Staple
Back Panel: A36P30, A36P30G
Enclosure: NEMA 3/4/12/13, IP66
Mounting: Wall, External Welded-On Bracket
Service Type: Indoor/Outdoor
Approval: UL 508A, CUL, CSA C22.2
