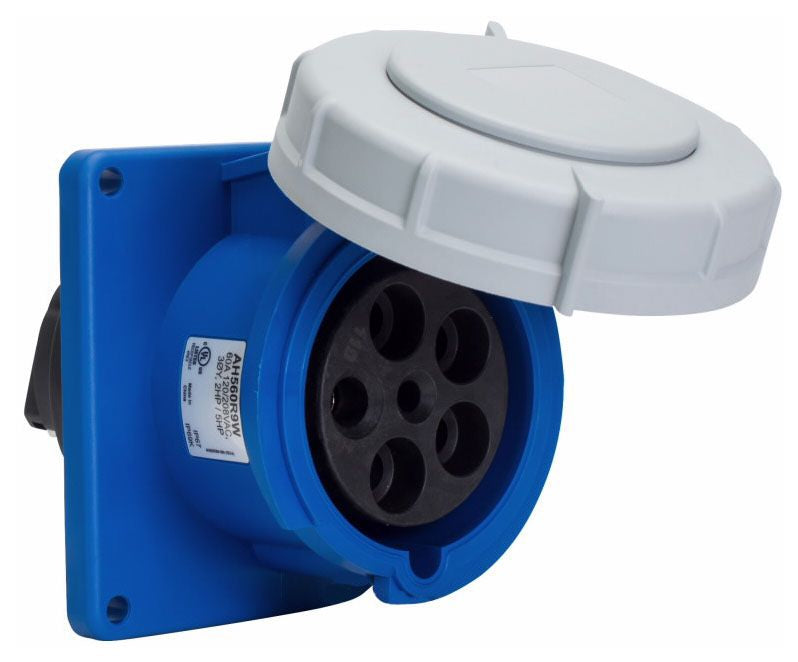

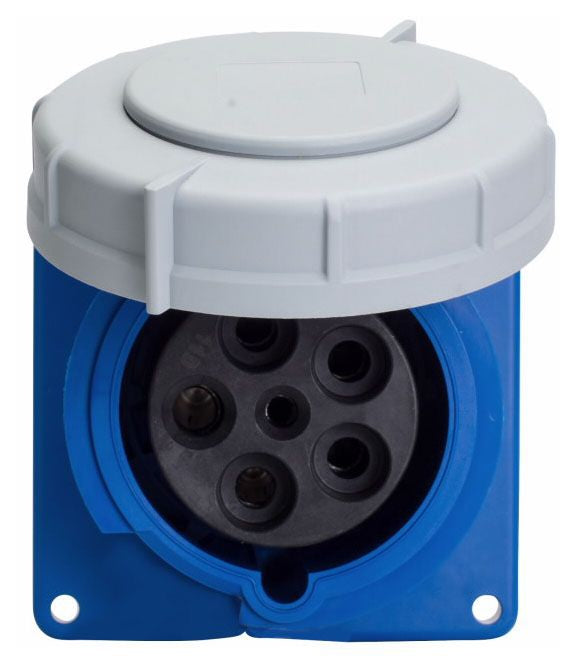

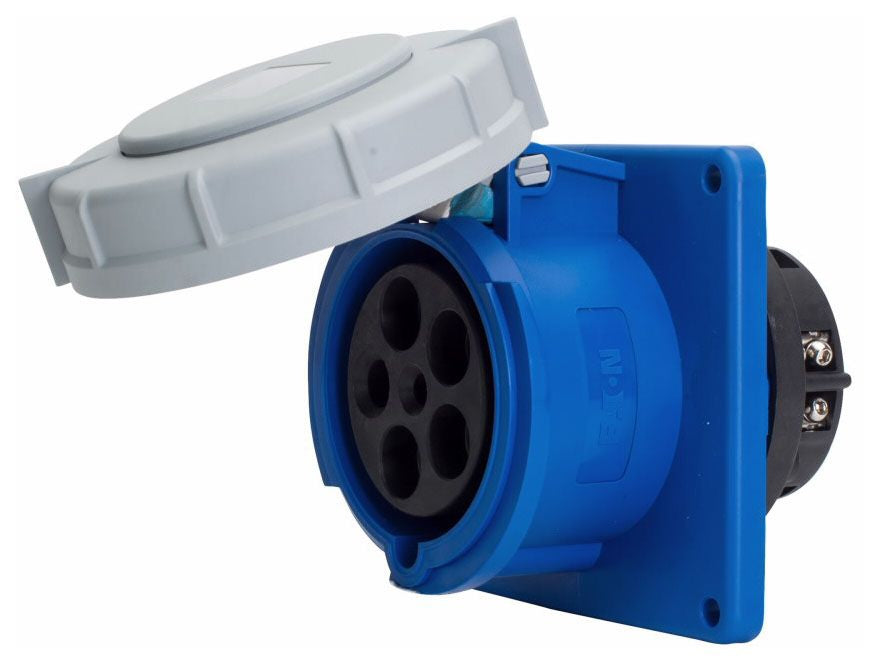

Arrow Hart AH560R9W Pin and Sleeve Receptacle

Spring Loaded Self Closing Cap with Silicone Gasket Protects Contacts When Not in Use; Rugged Materials Selected for Use in Wet Locations; Provides Corrosion Resistance; Standard Mounting Footprints and Blind Holes Provide Interchangeability with Major Brands; Individual Silicone Sealing Grommets with Cord Diameter Range Makes for Faster, Easier Assembly; Impact Resistant Thermoplastic Contact Carrier Provides Superior Electrical Insulation; Nickel Plated Contacts with Self Cleaning Field Proven Pressure Bands for Smooth Pin Insertion, Low Heat Rise, Corrosion Resistance and Quality Electrical Performance

Specifications:

Constructional Feature: Watertight
Voltage Rating: 208/120 VAC Star 3-Phase
Current Rating: 60 Ampere
Number of Poles: 4
Number of Wires: 5
Material: Nylon PA6
Approval: UL 1682, UL 1686, CSA C22.2
