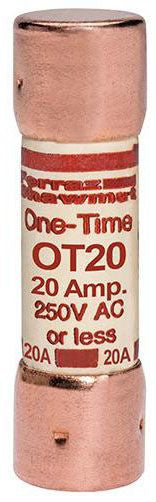

Mersen EP OT20 UL Power Fuse

OT, OTN and OTS general purpose fuses provide low cost protection for feeder and branch circuits serving lighting, heating, and other non-motor loads. OT, OTN and OTS fuses will safely interrupt available short circuit currents up to 50,000 amperes in all ratings. OT, OTN and OTS fuses are not rejection fuses – care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN 15 through 60 satisfy the Canadian electrical code requirement for Type “P,” low melting-point, non-time-delay fuses.

Specifications:

Type: Class K5
Characteristics: Fast Acting, One Time
Voltage Rating: 250 Volt AC/DC
Current Rating: 20 Amp
Interrupting Rating: 50 Kiloamp (AC), 20 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.56 Inch
Length: 2 Inch
Approval: UL 248/248-9, CSA C22.2
