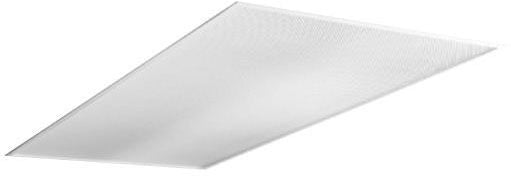

Columbia Lighting JT824-232G-FSA12-EU Recessed Lensed Troffer

T8 Optimized Fluorescent Lensed Troffer; Shallow Design Frees up Plenum Space; Hemmed Fixture Edges Reduce Risk of Injury During Fixture Handling and Installation; Integral T-Bar Clips Quickly Secure Fixture to the Grid; Corner Hinging for Easy Insertion and Removal of Shielding Frame; Housing Embossments Provide Extra Strength and Rigidity; Housing Ends Secured by Unique Corner Interlock and Screws; Snap-In Ballast Cover Requires No Tools for Wireway Access; Flush Steel Shielding Frame, Screw Assembled for Easy Diffuser Replacement; Rotary Action Cam Latches; Smooth Operating for Secure Shielding Retention; Metal to Metal Light Leak Protection on All Four Sides of Shielding Frame; Rotary Lock Lampholders for Positive Lamp Contact; Heat Sink Embossments Behind Ballasts for Cooler Operation, Longer Life

Specifications:

Lamp Type: 32T8
Number of Lamps: 2
Lamp/Ballast Voltage: 120 to 277 V
Lamp Wattage: 32/30/28/25 W
Lamp Length: 4 Ft
Lamp Included: No
Ballast Type: Electronic, Instant Start
Lens Type: #12 Pattern 0.100 Inch Thk Acrylic
Door Type: White Flush Steel Door
Finish: Phosphate Treated Baked High Gloss White Enamel Painted
Trim Type: T-Bar/Lay-In
Length: 48 Inch
Width: 24 Inch
Height: 3-1/8 Inch
Nominal Length: 4 Ft
Nominal Width: 2 Ft
