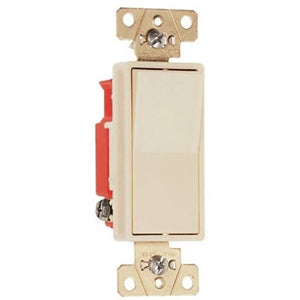

Pass & Seymour 2621I Decorator Switch

  • Sale
  • Regular price $8.40
Shipping calculated at checkout.


Cushioned Thermoplastic Paddle Assures Smooth, Quiet, Long Term Operation; Unique Single Rocking Butterfly Contact Provides Long Term Consistent Performance with Significantly Fewer Moving Part; Internal Screw­Pressure­Plate Back and Side Wire Capability for Easy Installation with #14 ­ #10 Stranded or Solid Copper/Copper Clad Wire; Terminals Made of High Conductivity Brass and Serrated for Maximum Wire Gripping; Silver Alloy Contacts Integrally Formed to the Butterfly Actuator Assures Reliable Performance; Integral Auto­Ground Clip for Positive Ground to Metal Boxes; Tri­Drive Ground, Terminal and Mounting Screw; All Terminal Screws Backed Out, Ready­to­Install; RoHS Compliant

Specifications:

Type: Standard Rocker, Grounding
Voltage Rating: 120/277 Volt AC
Current Rating: 20 Amp
Operation Type: 1-Pole
Wiring: Back, Side
Wall Plate Included: No
Material: Impact Resistant Polycarbonate (Back Body/Frame)
Color: Ivory
Size: 1.3 Inch Width x 1.06 Inch Depth x 3.531 Inch Height
Application: Specification Grade
Approval: UL 20, CSA C22.2
