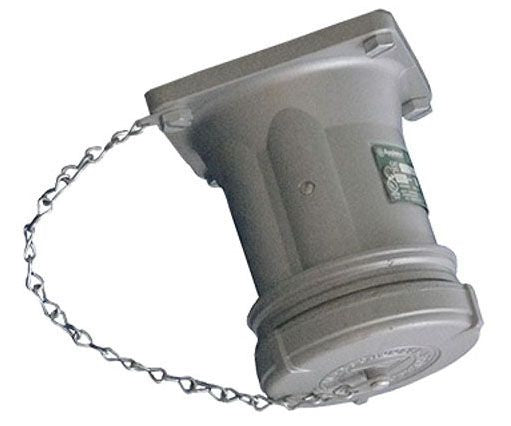

Powertite Series Receptacles use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. They feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, "make first, break last" grounding.

Specifications:

Type: Positive Polarized
Constructional Feature: Corrosion Resistant, Weatherproof
Voltage Rating: 600 Volt AC at 50 to 400 Hertz 3-Phase, 250 Volt DC
Current Rating: 100 Amp
Number of Poles: 4
Number of Wires: 3
Grounding Style: 2-Shell/Extra Pole
Door Type: Spring Door, Screw Cap
Material: Epoxy Powder Coated Copper-Free Aluminum
Grade: Marine
Approval: UL, CSA
