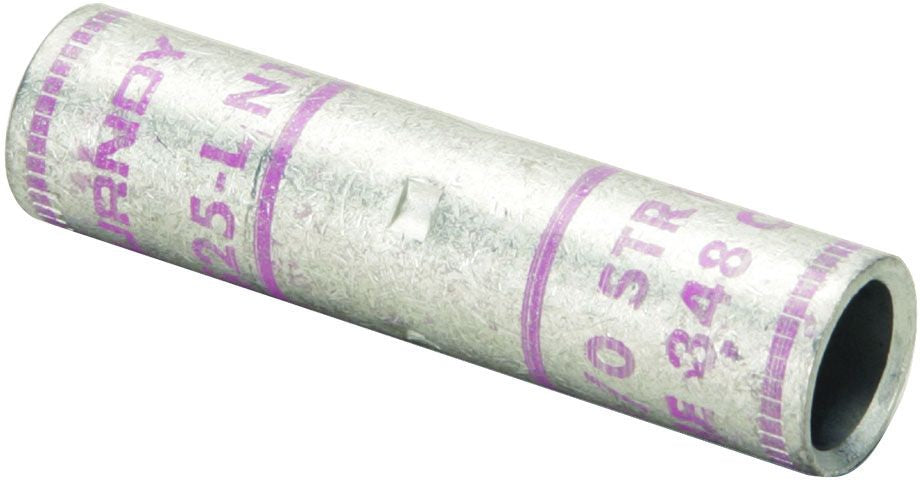

Copper Seamless Barrel has Center Stop Indentations Used to Indicate When Wire is Fully Inserted into Each Side of the Barrel; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Short/Standard Length Barrel is Recommended for Installation with Limited Space Requirements; RoHS Compliant

Specifications:

Type: Butt with Centre Wire Stop
Voltage Rating: 600 V to 35 KV
Conductor Size: 1 AWG Stranded
Conductor Material: Copper
Color Code: Green
Barrel Type: Standard with Chamfered
Length: 2.06 Inch
Outer Diameter: 0.46 Inch
Body Material: Electro-Tin Plated Copper
Approval: UL, CSA
