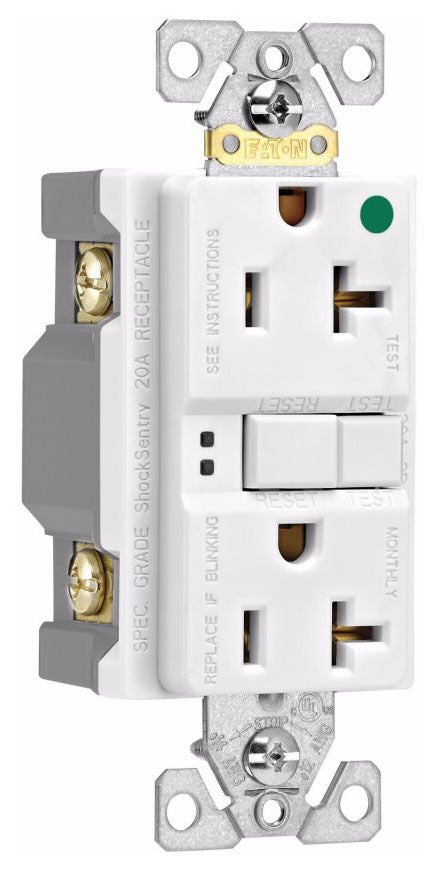

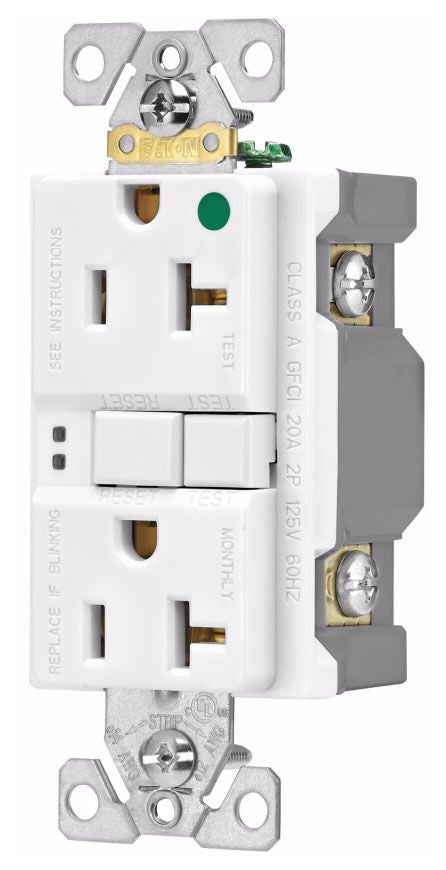

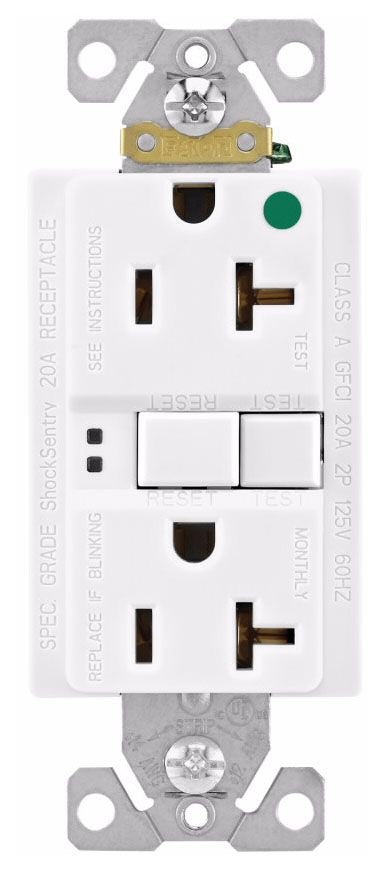

Arrow Hart SGFH20W GFCI Duplex Receptacle

Performs Periodic Self-Tests to Ensure Integrity of GFCI Protection if No Ground-Fault Protection is Detected, the Device will Trip, will not Reset and Status Indicator Light will Glow Amber; When Downstream Receptacles are Wired from Load Side, 20 Amp Feed-Through Rating Offers Full Protection; Test and Reset Buttons are Color Matched to Provide Superior Aesthetics; Longer, Wider Bridge Strap Provides 40% More Contact Area with Wallboard, Virtually Eliminating Floating Installations; Exclusive Built-In Wire Stripper Provides Fast Stripping of Wire without Tools; Line-Load Miswiring Protection GFCI will Not Provide Power Downstream when Wired Incorrectly; Tri-Combo Head Terminal and Mounting Screws

Specifications:

Type: Duplex
Configuration: 5-20R
Voltage Rating: 125 VAC
Current Rating: 20 Ampere
Number of Poles: 2
Number of Wires: 3
Material: Nylon (Top Housing), Polycarbonate (Bottom Housing)
Color: White
Wiring: Back, Side
Grade: Hospital
Approval: UL (Canada and US), UL 498, UL 943, CSA, NOM 426
