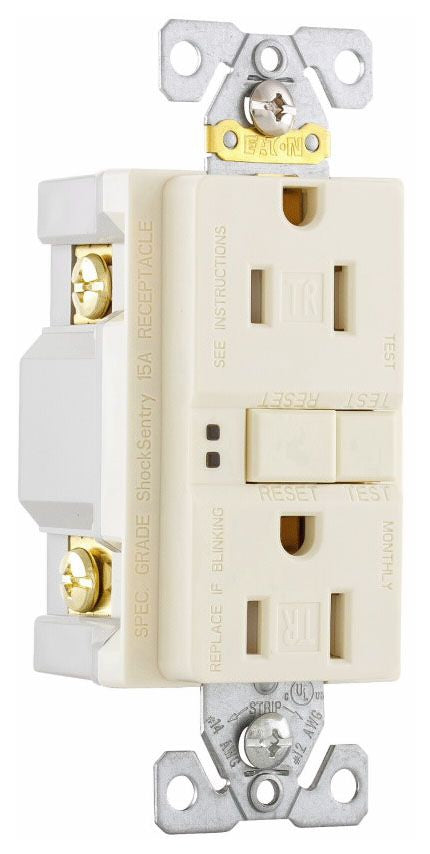

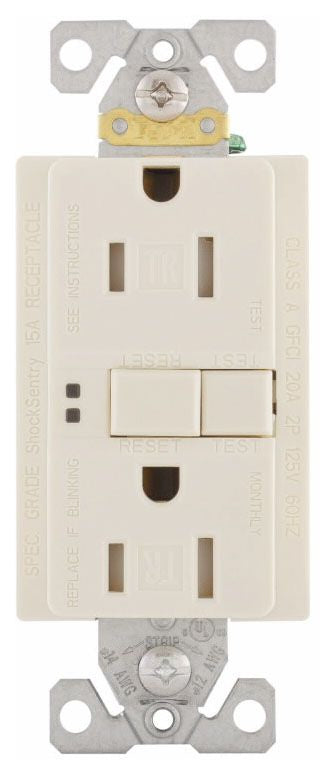

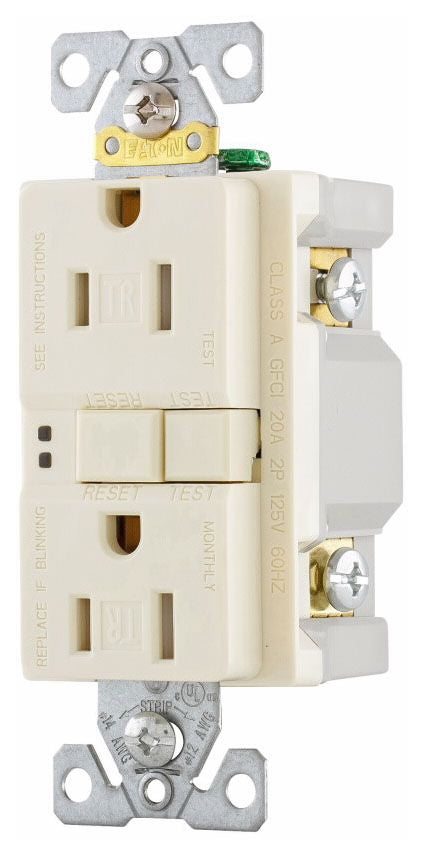

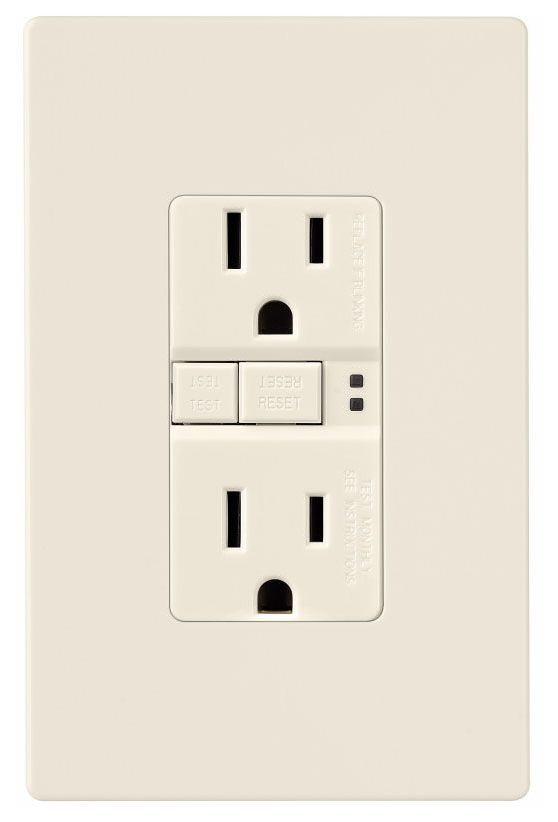

Arrow Hart TRSGF15LA GFCI Duplex Receptacle

Meets and Exceeds 10 Kiloamp Short Circuit Testing; Performs Periodic Self Tests to Ensure Integrity of GFCI Protection If No Ground-Fault Protection is Detected, the Device will Trip, will Not Reset and the Status Indicator Light will Glow Amber; Tapered Back Wire Openings Handle Multiple Wire Sizes and Types for Applications up to 10 AWG Solid or Stranded Wire; When Downstream Receptacles are Wired from Load Side, a 20 Amp Feed-Through Rating Offers Full Protection; Test and Reset Buttons are Color Matched to Provide Superior Aesthetics; Longer, Wider Bridge Strap Provides 40% More Contact Area with Wallboard, Virtually Eliminating Floating Installations; Exclusive Built-In Wire Stripper Provides Fast Stripping of Wire without Tools; Line-Load Miswiring Protection GFCI will Not Provide Power Downstream when Wired Incorrectly; Tri-Combo Head Terminal and Mounting Screws; Tamper Resistant

Specifications:

Type: Duplex
Configuration: 5-15R
Voltage Rating: 125 VAC
Current Rating: 15 Ampere
Number of Poles: 2
Number of Wires: 3
Material: Polypropylene (Top Housing), PVC (Bottom Housing)
Color: Light Almond
Wiring: Back, Side
Grade: Specification
Approval: UL (Canada and US), UL 498, UL 943, CSA, NOM 426
