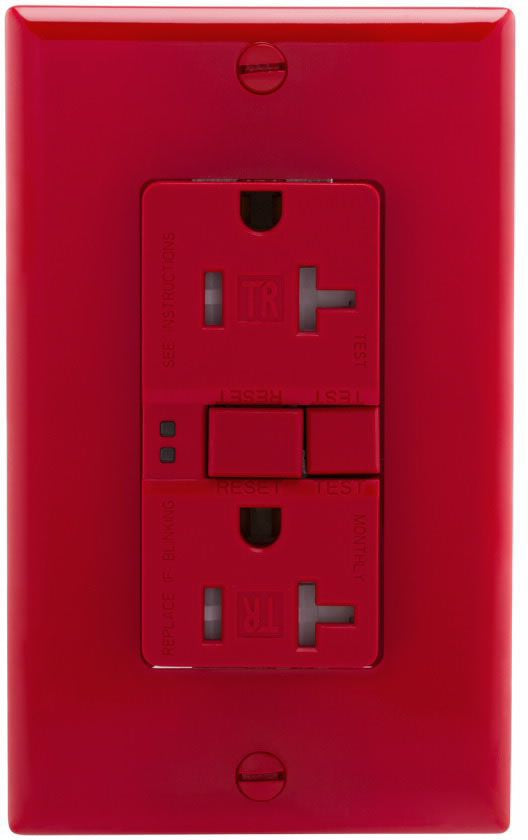

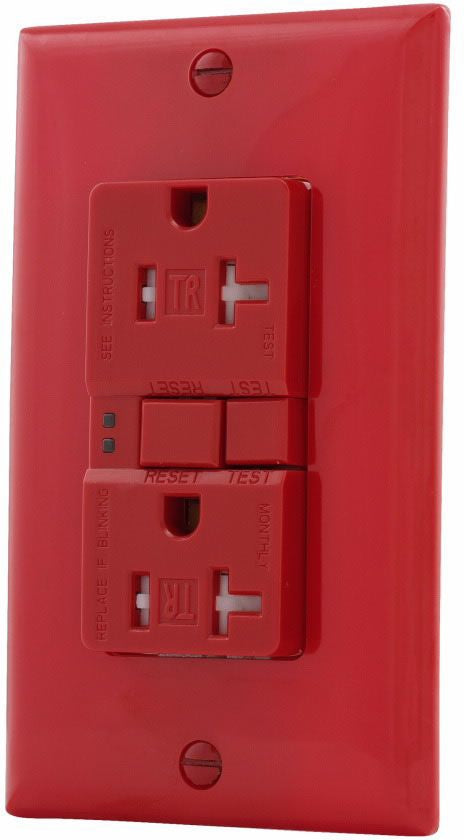

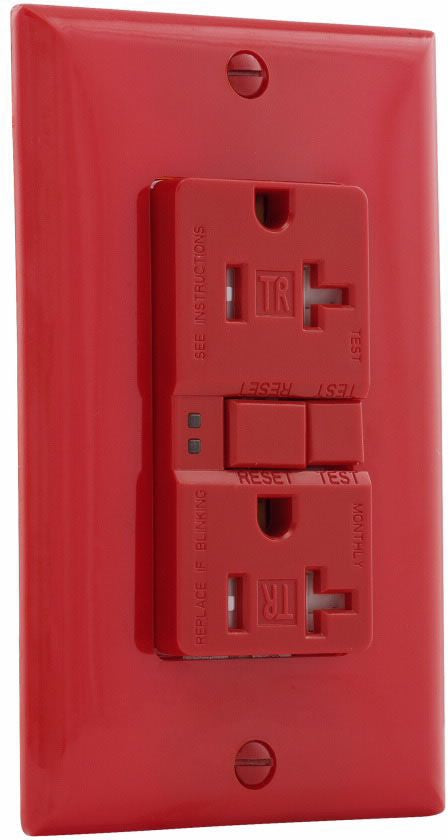

Arrow Hart TRSGF20RD GFCI Receptacle

Performs Periodic Self-Tests to Ensure Integrity of GFCI Protection; If no Ground-Fault Protection is Detected, the Device will Trip, will not Reset and the Status Indicator Light will Glow Amber; Meets and Exceeds 10 Kiloamp Short Circuit Testing and Underwriters Laboratories; Large Visual Trip Indicator Light Gives Quick Notification of a Tripped or "End of Life" Condition; Automatic Grounding System Eliminates Need for Bonding Jumper; Ground Termination with Backwire Clamp Provides Secure Wiring and Reduces Installation Time; Tamper Resistant Shutters Resist the Insertion of Foreign Objects; Line Side Terminals are Backed Out and Staked for Fast Installation; Horizontal Test/Reset Button Alignment Provides Larger Unobstructed Area; Test and Reset Buttons are Color Matched to Provide Superior Aesthetics; Tapered Back Wire Openings Handle Multiple Wire Sizes and Types for Applications up to #10 AWG Solid or Stranded Wire; When Downstream Receptacles are Wired from Load Side 20 Amp Feed-Through Rating Offers Full Protection; Line-Load Miswiring Protection; Tri-Combo Head Terminal and Mounting Screws; RoHS Compliant; NAFTA Compliant

Specifications:

Type: Duplex, Self-Test, Tamper Resistant
Configuration: 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Material: PVC (Body), Brass (Contact)
Color: Red
Wiring: Back, Side
Grade: Specification
Approval: UL (Canada and US), UL 498/943, NOM 426
