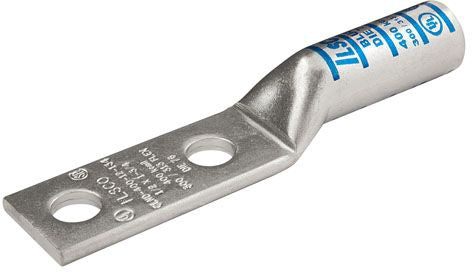

Ilsco CLND-2-14-58 Compression Cable Lug

Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 2 AWG
Barrel Type: Long
Barrel Length: 1.125 Inch
Pad Size: 1.437 Inch L x 0.599 Inch W x 0.109 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 5/8 Inch
Stud Size: 1/4 Inch
Color: Brown
Die Index: I-33
Material: Seamless Electro-Tin Plated Copper
Overall Length: 2.848 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
