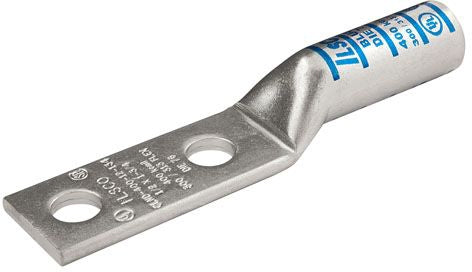

Ilsco CLND-500-38-1 Compression Cable Lug
Couldn't load pickup availability
Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant
Specifications:
Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 500 KCMIL
Barrel Type: Long
Barrel Length: 2.25 Inch
Pad Size: 1.937 Inch L x 1.535 Inch W x 0.234 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Brown
Die Index: I-87
Material: Seamless Electro-Tin Plated Copper
Overall Length: 4.919 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
