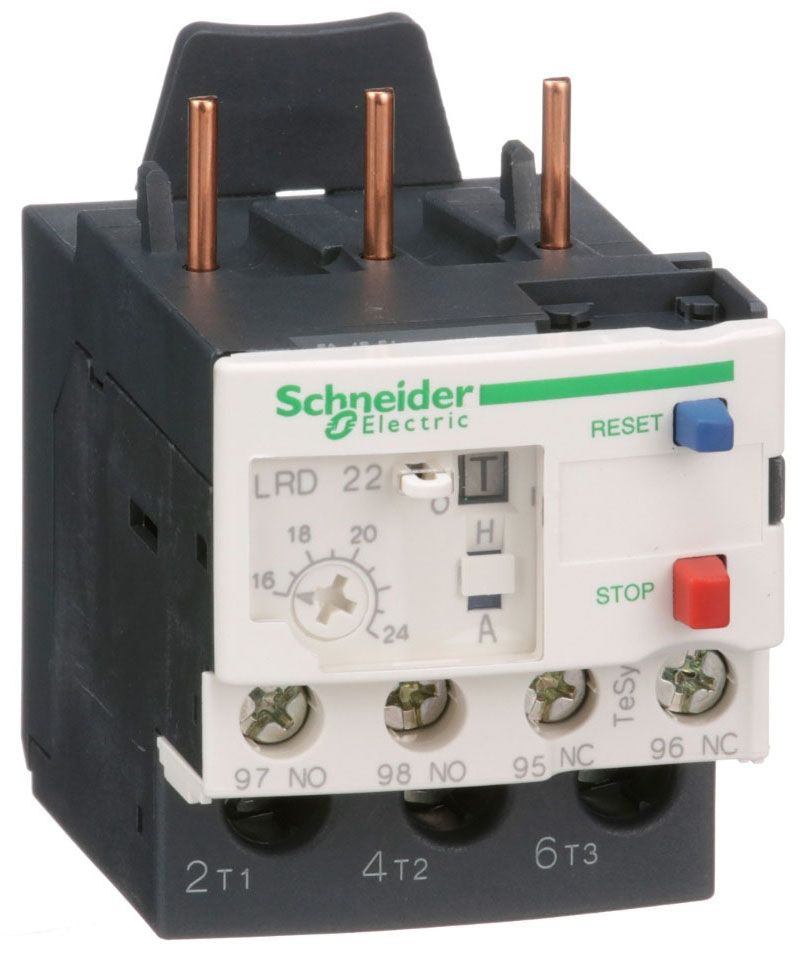

Schneider Electric LRD22 Overload Relay
Regular price
$150.06
Couldn't load pickup availability
TeSys N Starters are Used for Full-Voltage Starting and Stopping of AC Squirrel-Cage Motors; Starters with Bimetal Overload Protection Can be Assembled from TeSys N Contactors and TeSys D Overload Relays; RoHS/REACH Compliant; Mercury-Free; Green Premium Product; Made in USA
Specifications:
Type: Thermal, Bi-Metallic
Motor FLA: 16 to 24 Amp
Number of Poles: 3
Trip Class: Class 10A
Reset Type: Automatic/Manual
Ambient Temperature: Compensated
Contact Rating: 690 Volt AC
Terminal Type: Screw Clamp
Mounting: Contactor
Enclosure: IP20
Application: 1-Phase
Approval: UL 508, CSA C22.2, CE
