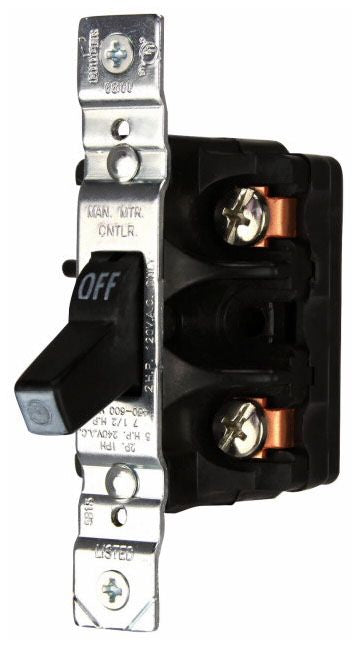

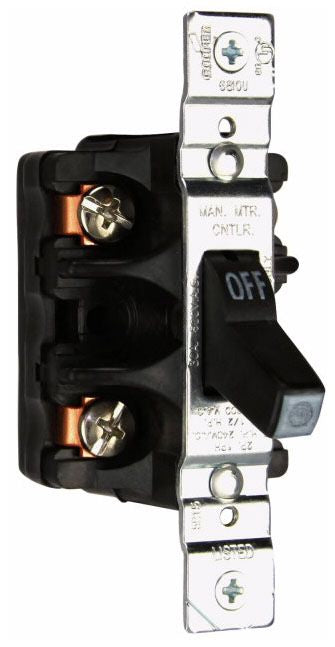

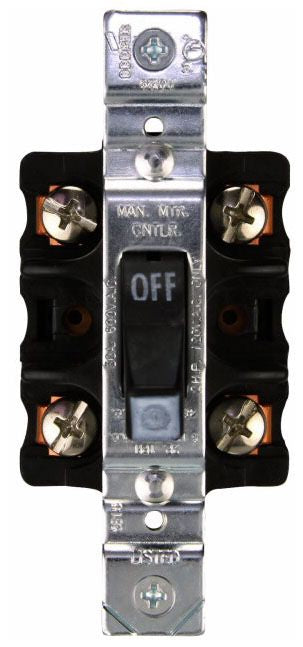

Arrow Hart AH6810U Motor Controller Switch
Couldn't load pickup availability
Straight blade plugs & connectors for any application Arrow Hart’s extensive offering of straight blade plugs and connectors cover the full range of hospital, industrial and commercial specification grades for applications where quality and durability are critical. Industrial specification grade plugs and connectors With a variety of styles including safety grip, auto grip and quick grip, these devices are designed to install quickly and easily and provide reliable performance in tough industrial environments.
Specifications:
Type: 1-Phase
Current Rating: 30 Ampere
Voltage Rating: 600 VAC
Operation Type: DPST
HP at 120 V: 2 HP
HP at 240 V: 5 HP
HP at 480 V: 7.5 HP
HP at 600 V: 7.5 HP
Material: Glass-Filled Nylon
Size: 1.69 Inch W x 1.75 Inch D x 3.81 Inch H
Approval: UL (Canada and US)
