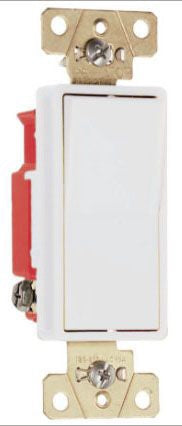

Pass & Seymour 2623W Decorator Switch

In stock - 71 items available
SKU: 21080
Regular price $9.98

Impact-Resistant Polycarb Back Body and Frame; Cushioned Thermoplastic Paddle Assures Smooth, Quiet, Long Term Operation; Unique Single Rocking Butterfly Contact Provides Long Term Consistent Performance with Significantly Fewer Moving Parts; Internal Screw-Pressure-Plate Back and Side Wire Capability for Easy Installation with #14 - #10 Stranded or Solid Copper/Copper Clad Wire; Terminals Made of High Conductivity Brass and Serrated for Maximum Wire Gripping; Silver Alloy Contacts Integrally Formed to the Butterfly Actuator Assures Reliable Performance; Integral Auto-Ground Clip for Positive Ground to Metal Boxes; Tri-Drive Ground, Terminal and Mounting Screws; All Terminal Screws Backed Out, Ready-To-Install

Specifications:

Type: Standard Rocker, Grounding
Voltage Rating: 120/277 Volt AC
Current Rating: 20 Amp
Operation Type: 3-Way
Wiring: Back, Side
Wall Plate Included: No
Material: Impact Resistant Polycarbonate (Back Body/Frame)
Color: White
Size: 1.3 Inch Width x 1.06 Inch Depth x 3.531 Inch Height
Application: Specification Grade
Approval: UL 20, CSA C22.2
