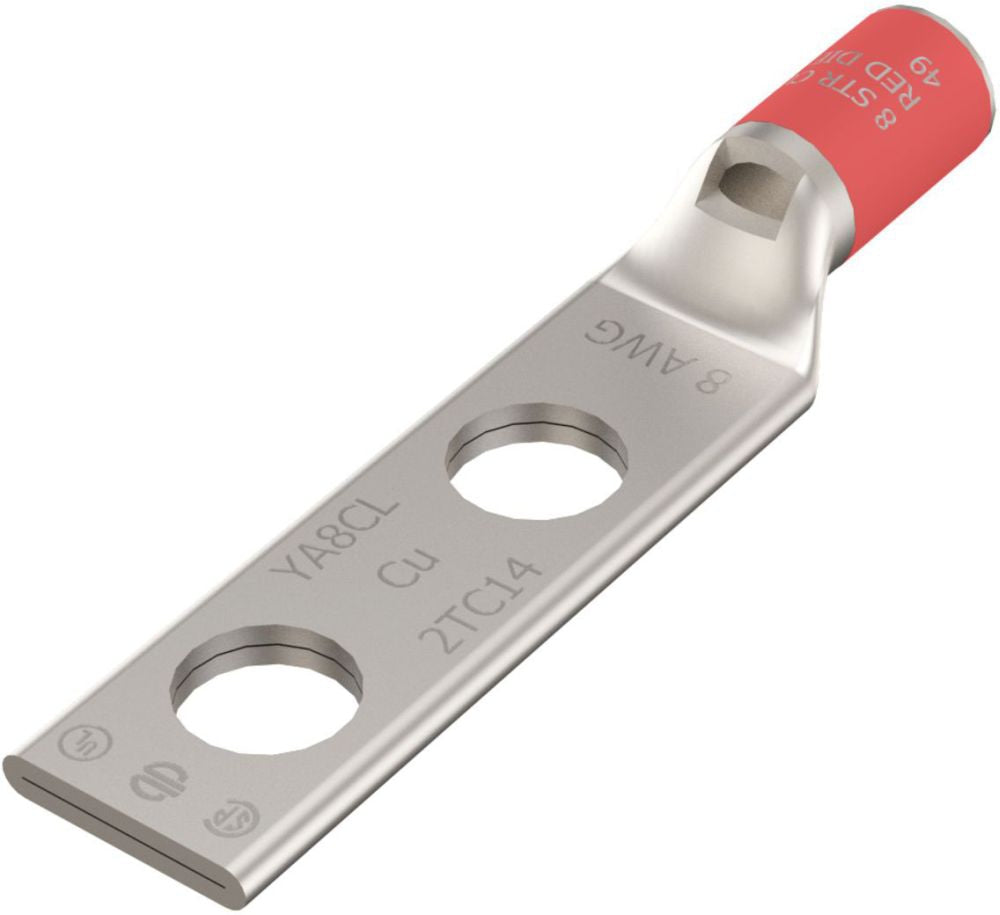

Burndy YA8CL2TC38 Compression Terminal
Couldn't load pickup availability
Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement
Specifications:
Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 37/24, 8 AWG (Weld), 6 AWG Solid, 8 AWG Solid/Stranded
Barrel Type: Short, Standard, Straight
Barrel Length: 0.44 Inch
Pad Size: 0.58 Inch W x 0.06 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Red
Die Index: 49
Material: Electro-Tin Plated Copper
Overall Length: 2.52 Inch
Approval: UL 468A/468B, CSA
