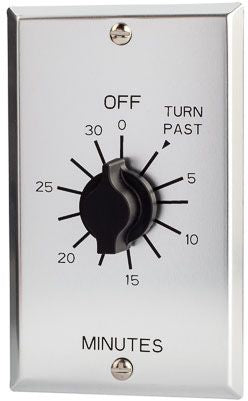

Variable Timing Twist Knob for Time on Setting; Time on Lengths from 15 Min to 12 Hour Vary by Model; Hold Feature Some Models have Position for Constant On; Easy Set No Adjustments; Just Wire and Go; Easy Wiring No Neutral Required; Great for Retrofit

Specifications:

Type: Commercial
Time Cycle: 30 Minute
Operation Type: without Hold
Switch Type: SPDT
Contact Current Rating: 20 Amp at 125 Volt AC 50/60 Hertz (Resistive/Inductive), 10 Amp at 250/277 Volt AC 50/60 Hertz (Resistive/Inductive), 7 Amp at 125 Volt AC 50/60 Hertz (Tungsten)
Contact Power Rating: 1 HP at 125 Volt AC, 2 HP at 250 Volt AC (Motor)
Operating Temperature: 32 to 122 Deg F
Color: Metal Brushed Aluminum
Mounting: Wall
Size: 3 Inch Width x 5 Inch Height
Application: Ventilating Fans, HVAC, Whirlpools, Self Storage, Motors and Pumps
Approval: UL (Canada and US)
