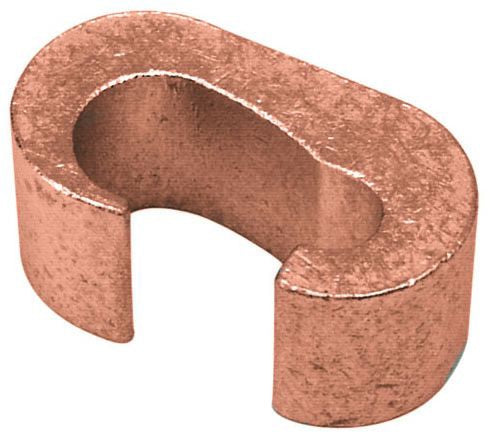

Burndy YCHC29TC29 Compression Tap Connector

Out of stock
SKU: 212259
Regular price $36.51

Wide Range of Run/Tap Combinations Including Class B Code I and Locomotive Flexible Conductor Combinations; All (B/B, B/I, I/I) Combinations are Recommended; Each Connector Accommodates Many Cable Combinations, Allowing Maximum Flexibility for the Design and Installation of a System; Color-Coded on the Connector that Matches the Die Provides Matched System for Fast and Easy Installation; Flame Retardant Type CF-FR Covers Meet Oxygen Index 28 and UL 94 V-O Requirements; A Complete Insulated UL Listed Installation is Provided; Die Index Embossed on Connector after Completion of Crimp; Permanent Inspectability of Installed Connector is Insure Consistently Reliable and Dependable Connections; RoHS Compliant


Shape: C
Number of Taps: 1
Conductor Material: Copper
Minimum Run Conductor Size: 2 AWG (Flex), 2 AWG
Maximum Run Conductor Size: 4/0 AWG (Flex), 250 KCMIL
Minimum Tap Conductor Size: 2 AWG, 2 AWG (Flex) Stranded
Maximum Tap Conductor Size: 4/0 AWG (Flex), 250 KCMIL Stranded
Die Index: 997
Body Material: Electro-Tin Plated Copper
Approval: UL, CSA
