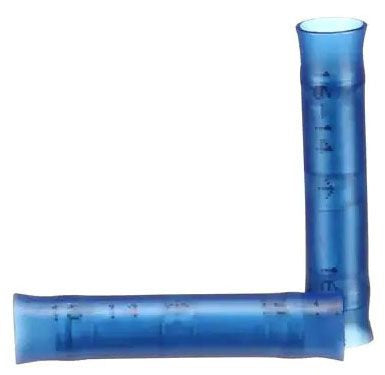

Scotchlok MNG18BCX Butt Connector

  • Sale
  • Regular price $1.71
Shipping calculated at checkout.


Our satisfied customers know our products for Effective and reliable performance. Variety of types, sizes and materials that meet a broad application range, including the demands of temperature and weather. Design features assuring easy installation of 3Mâ„¢ Products positive and easy wire insertion, elimination of strand hang-ups and wire twisting and easy insulation entry. These are a few of the characteristics that make the installers job easier.

Specifications:

Type: Butt
Length: 1 Inch
Thickness: 0.03 Inch
Barrel Length: 0.25 Inch
Barrel Inner Diameter: 0.07 Inch
Maximum Insulation Diameter: 0.07 Inch
Conductor Size: 22 to 18 AWG
Insulation Type: Nylon with Insulated Grip
Color: Red
Material: Tin Plated Copper
Temperature Rating: -40 to 105 Deg C
Standard Package: 100 per Bottle
Approval: UL, CSA
