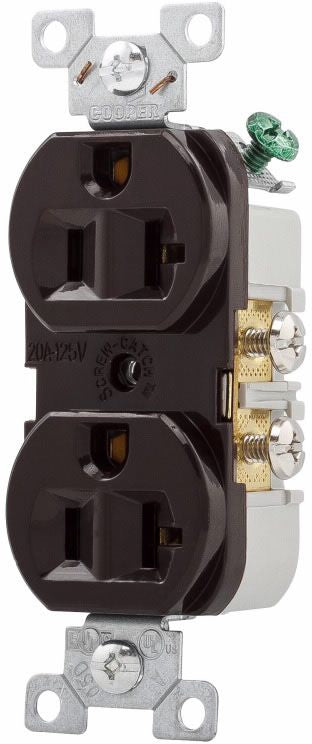

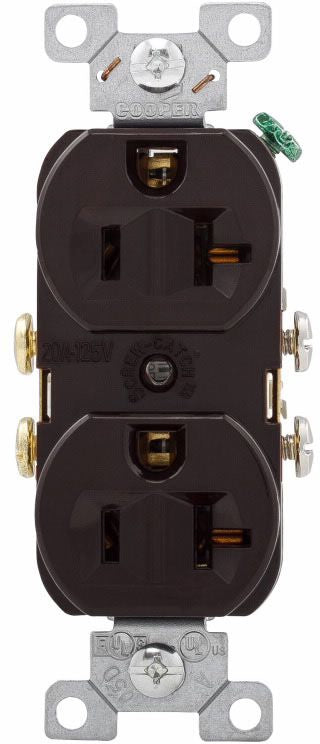

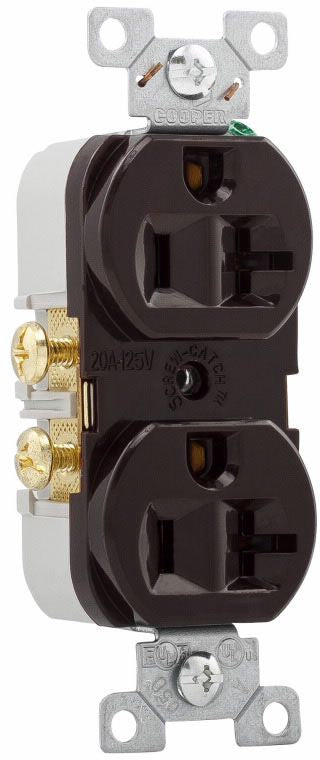

Arrow Hart CR20B Straight Blade Single Receptacle

Galvanized Steel, Wrap-Around Yoke Mounting Strap for Superior Assembly Security; Extra Length/Width Helps Reach Large Panel Cutouts for Code Compliance; Automatic Grounding System Eliminates Need for Bonding Jumper in Grounded Metal Enclosure, Provides Redundant Measure of Ground Continuity where Jumper is Used; Screw-Catch Feature on Duplex Devices Speeds Mounting of Wall Plates; Tamper Resistant Receptacles Provide Compliance with 2014 NEC Article 406.12 that States that All 15 Amp and 20 Amp, 125 Volt Receptacles Installed in Dwelling Units Must be Tamper Resistant; RoHS Compliant

Specifications:

Type: Duplex
Constructional Feature: Tamper Resistant
Configuration: 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: PVC (Body), Galvanized Steel (Strap), Brass Plated Steel (Terminal Screw), Brass Alloy (Contact)
Color: Brown
Wiring: Side
Grade: Commercial
Approval: UL (Canada and US), UL 94, CSA C22.2, NOM 426
