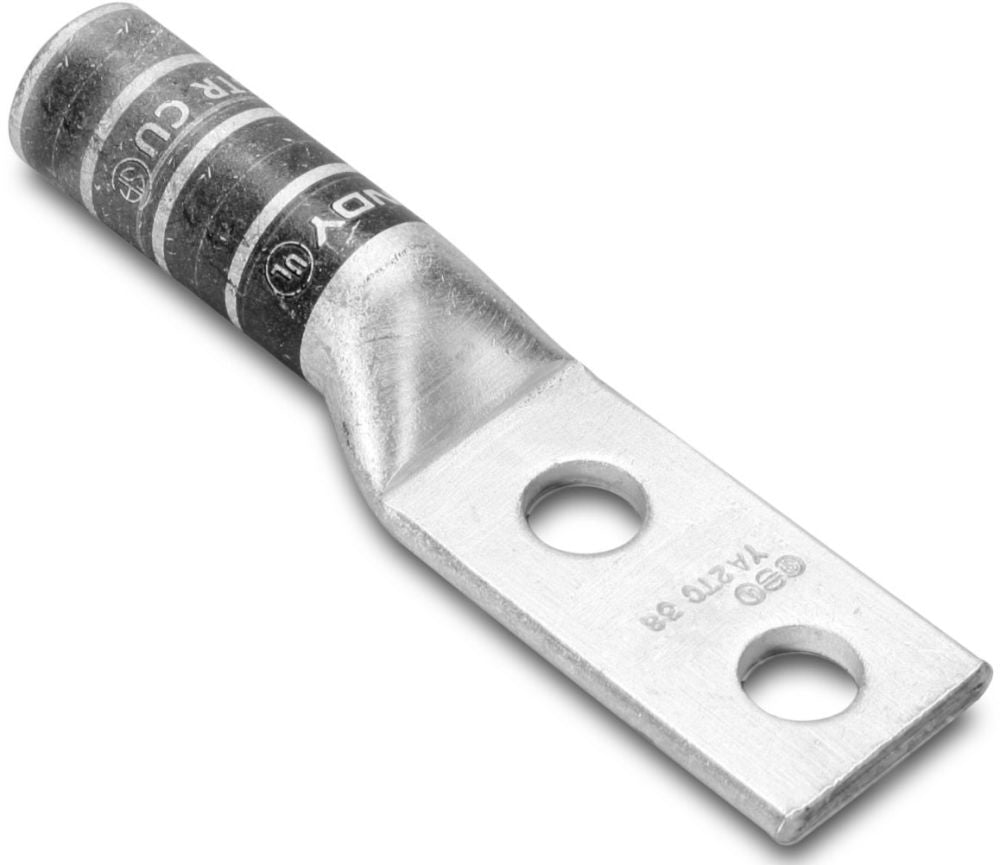

Burndy YA6C2TC38 Compression Cable Lug

Out of stock
SKU: 213946
Regular price $12.24
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Copper
Conductor Size: 6 AWG Stranded (Code)
Barrel Type: Long, Skived, Standard, Straight
Barrel Length: 1.12 Inch
Pad Size: 0.58 Inch W x 0.06 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 3/8 Inch
Color: Blue
Die Index: 7/374
Material: Electro-Tin Plated Copper
Overall Length: 3.22 Inch
Approval: UL 468A/B, CSA
