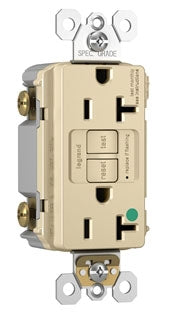

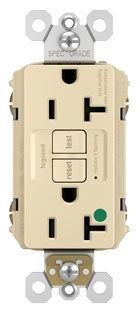

Pass & Seymour 2097HGTRI Self-Test GFCI Receptacle

  • Sale
  • Regular price $48.40
Shipping calculated at checkout.


Protects Children Patented Shutter System Helps Prevent Improper Insertion of Foreign Objects; Conducts an Automatic Test Every Three Seconds, Ensuring it's Always Ready to Protect; If the Device Fails the Test, the Indicator Light Flashes to Signal that the GFCI Should be Replaced; It also has Our Proven Safelock Protection Feature if Critical Components are Damaged and Protection is Lost, Power to the Receptacle is Disconnected; Thinner than Competitors GFCI Receptacles Leaves More Room for Wires in the Box; Auto-Ground Clip Assures a Positive Ground to Metal Box; Feed-Thru Wiring Configuration Allows GFCI to Protect Downstream Receptacles; Prevents Line-Load Reversal Miswire No Power to the Face or Downstream Receptacles if Wired Incorrectly; Side or Internal Screw Pressure Plate Back Wire with #14 to #10 AWG Solid or Stranded Copper Wire; Two Back Wire Holes Per Terminal; Ground Screw has a Back Wire Clamp for Easy Installation; Mounting Screws are Shipped Captive in the Device and Wallplate for Easier Installation; High Impact Resistant Thermoplastic Construction; Extra Long Strap; Button Colors Match the Device Face; Dual-Direction Test and Reset Buttons

Specifications:

Type: Duplex with LED Indicator Light
Configuration: 5-20R
Voltage Rating: 125 Volt AC at 60 Hertz
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Material: High Impact Resistant Thermoplastic
Color: Ivory
Wiring: Back, Side
Grade: Hospital
Approval: UL (Canada and US), UL 498/943, CSA C22.2


Documents:
