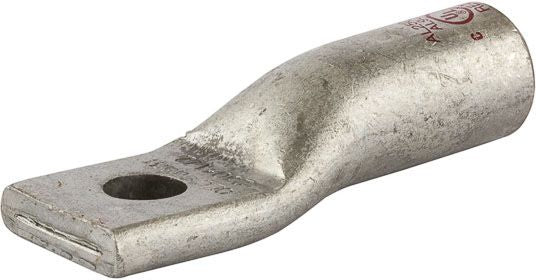

NSi Industries AL75048 Compression Cable Lug

Out of stock
SKU: 214227
Regular price $0.76
OR

Produced from High Conductivity Aluminum Tubing; Electro Tin Plated for Corrosion Resistance; Color Coded and Marked with Die Index Information; Pre-Filled with Oxide Inhibitor and Capped with Color Coded Cap; Listed for 35 Kilovolt Maximum When Properly Installed to Cable Manufactures Specifications

Specifications:

Voltage Rating: 600 V to 35 KV
Conductor Material: Aluminum/Copper
Conductor Size: 750 KCMIL
Barrel Type: Standard
Barrel Length: 3.2 Inch
Pad Size: 2 Inch L x 2.19 Inch W x 0.55 Inch Thk
Number of Pad Holes: 1
Stud Size: 1/2 Inch
Color: Yellow
Die Index: 18/936/115H
Material: Electro Tin Plated Aluminum
Overall Length: 6.12 Inch
Approval: UL 486A/B, UL (Canada and US)
