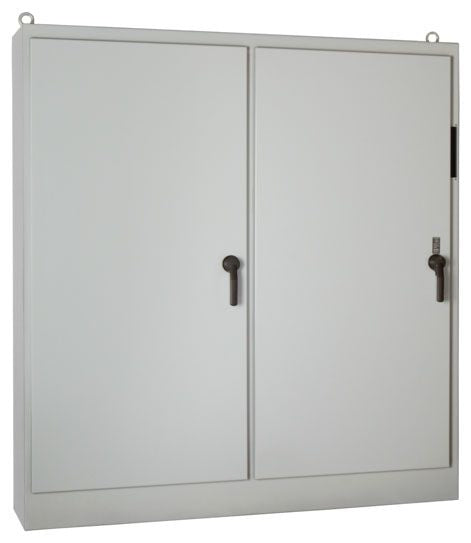

Hoffman Enclosures A72XM4018FTC Freestanding Disconnect Enclosure

Simple, Heavy Duty and Cost Effective; Seams Continuously Welded and Ground Smooth; Body Stiffeners in Larger Enclosures for Extra Rigidity; Body Flange Trough Excludes Liquids and Contaminants; Heavy Duty Lifting Eyes Anchor into Reinforced Top; Removable Centerposts Permit Easy Panel Installation; Concealed, Easy-To-Remove Hinges; Heavy Duty 3-Point Latching Mechanism Operated by Padlocking Handle on all Doors; Oil Resistant Gasket; Master Door is Far Right Hand Door on All Enclosures; Defeater on Primary Door Requires a Screwdriver to Open; Mechanical Interlock Activated by Master Door Prevents Slave Doors from Being Opened First; Doors Can be Closed in any Order; Universal Cutout on Right Flange Provides Mounting for Most Disconnect Operator by Using Operator Adapter; RoHS/REACH Compliant

Specifications:

Type: Heavy Duty Freestanding, Flange Mount Circuit Breaker/Disconnect Switch
Height: 72.12 Inch
Width: 39.5 Inch
Depth: 18.12 Inch
Material: Steel
Material Specification: 11 Gauge
Color: White Inside/ANSI 61 Gray Outside
Finish: Polyester Powder Coated
Door Type: 1-Door Single Access
Door Mounting: Concealed Hinged, 3-Point Latch with Padlockable Handle
Back Panel: A72PM40, A72PM40G
Enclosure: NEMA 12, IP55
Mounting: Floor
Approval: UL 508A, CUL, CSA C22.2
