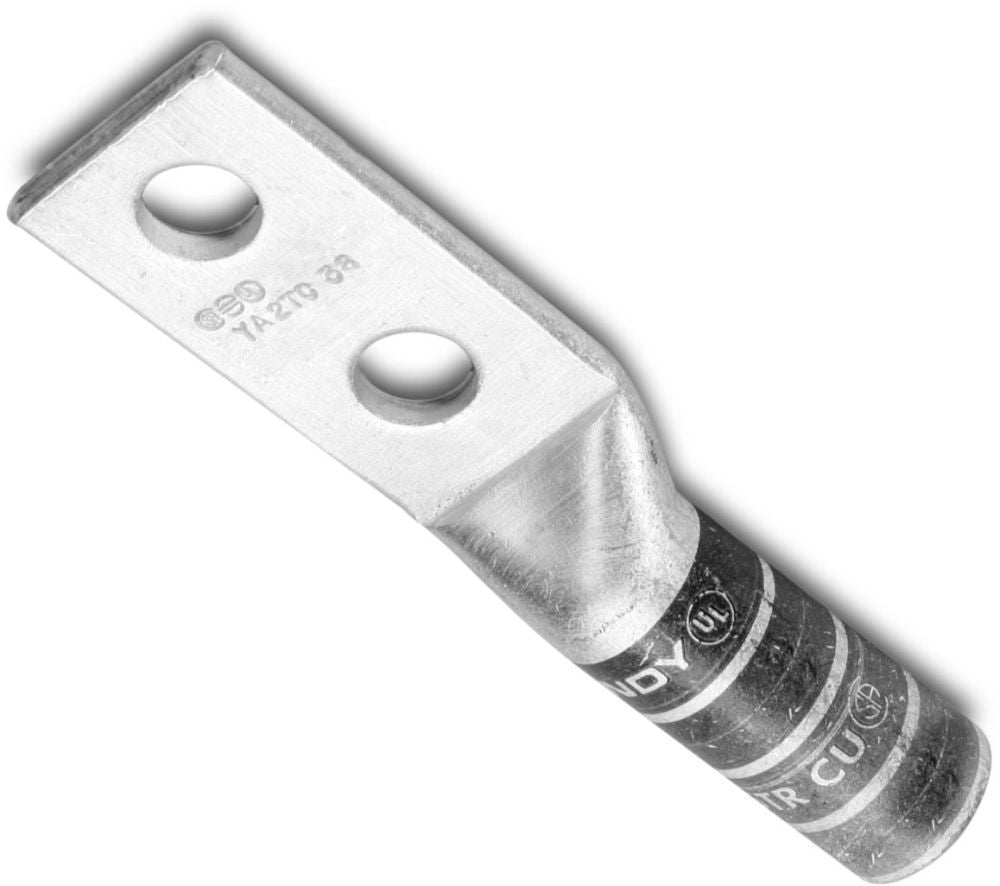

Burndy YA2C2TC38E2 Compression Terminal

Out of stock
SKU: 214872
Regular price $14.69
OR

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Wire Strands During Insertion; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 2 AWG Solid/Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 1.25 Inch
Pad Size: 0.6 Inch W x 0.11 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 0.75 Inch
Stud Size: 3/8 Inch
Color: Brown
Die Index: 10
Material: Electro-Tin Plated Copper
Overall Length: 3.17 Inch
Approval: UL 468A/468B, CSA
