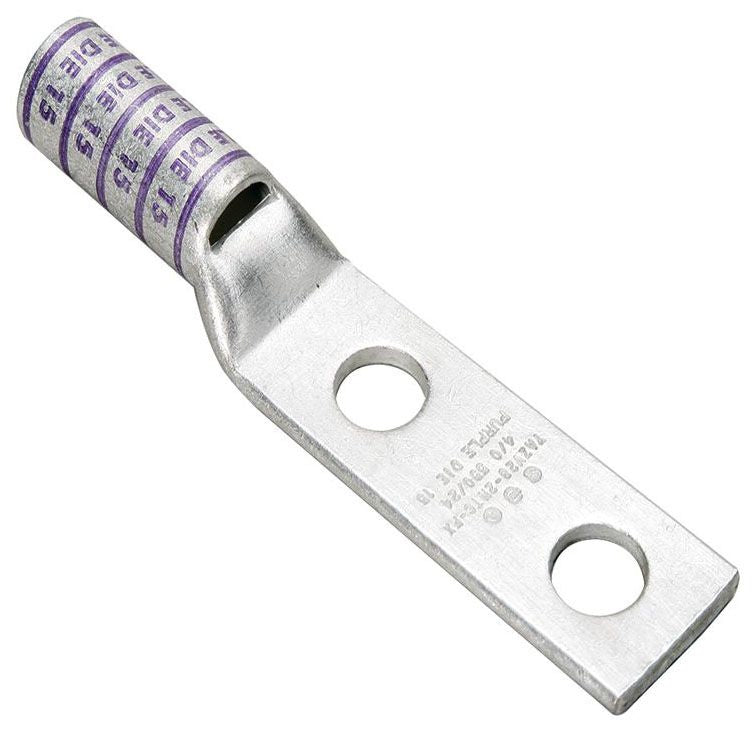

Burndy YAZ6C2TC14E2 Compression Terminal

Out of stock
SKU: 215000
Regular price $12.24

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection


Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 30 (Navy), 6 AWG Stranded (Code)
Barrel Type: Long, Skived, Straight
Barrel Length: 1.12 Inch
Pad Size: 0.45 Inch W x 0.08 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 3/4 Inch
Stud Size: 1/4 Inch
Color: Blue
Die Index: 7/374
Material: Electro-Tin Plated Copper
Overall Length: 2.78 Inch
Approval: UL, CSA
