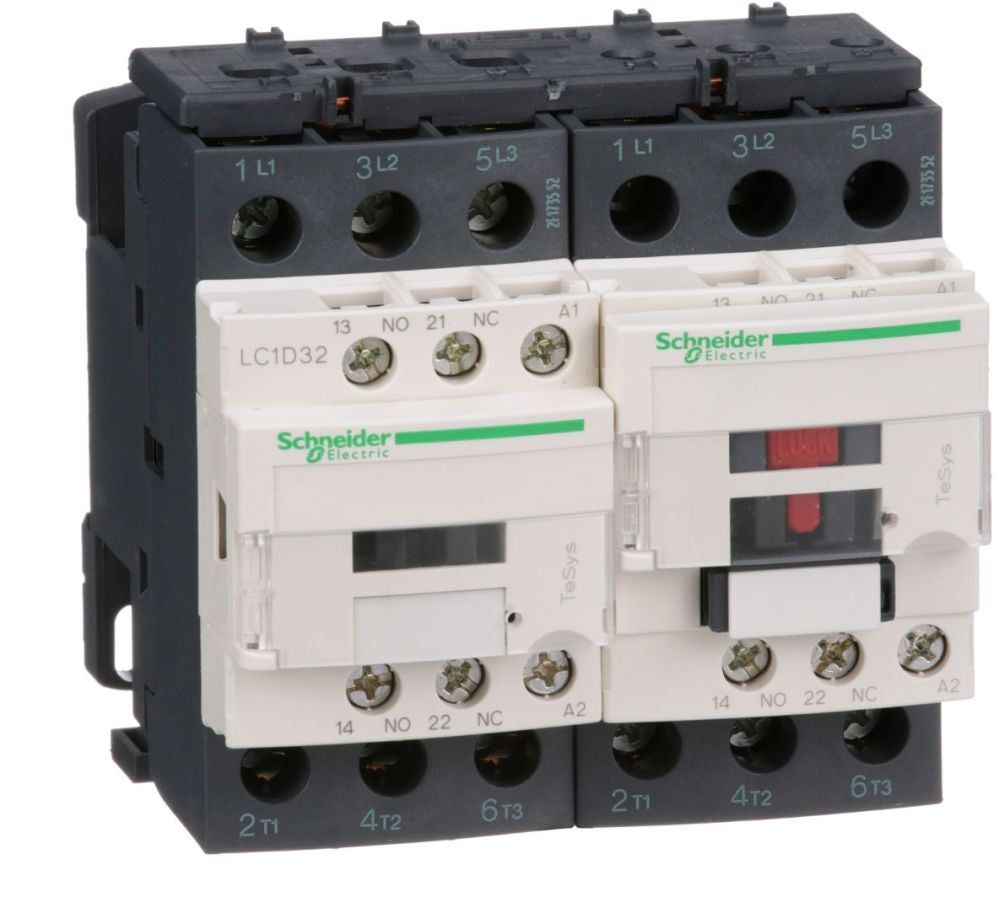

Schneider Electric LC2D32G7 Motor Control Contactor
Regular price
$803.52
Couldn't load pickup availability
RoHS/REACH Compliant; Mercury-Free; PVC-Free; Toxic Heavy Metal Free; Green Premium Product
Specifications:
Type: Full Voltage, Reversing
Number of Poles: 3
Power Rating/Voltage: 2 HP at 115 Volt AC 1-Phase, 5 HP at 230 Volt AC 3-Phase, 10 HP at 200/230 Volt AC 3-Phase, 20 HP at 460 Volt AC 3-Phase, 25 HP at 575 Volt AC 3-Phase 50/60 Hertz
Current Rating: 50 Amp
Inductive Ampere: 32 Amp (AC-3)
Resistive Ampere: 50 Amp (AC-1)
Coil Voltage: 120 Volt AC at 50/60 Hertz
Auxiliary Contact: 1NO-1NC
Mounting: Plate Rail
Enclosure: IP2X
Construction Standard: IEC
Approval: UL 508, CSA C22.2
